2023 Honda ST125 Dax Announced for Europe

Dennis Chung
by Dennis Chung
Fast Facts

T-shaped chassis
Tiny 1-gallon fuel tank
IMU-based ABS
No word on US availability

Another friendly little retro Minimoto from Honda

Honda announced a new 125cc Minimoto for Europe, reviving the Dax model name for a new generation of riders. The name was originally used in Europe in 1969 for Honda’s ST-series in 50 and 70cc models, and last produced from 1995 to 2003 in Japan. The name comes from “Dachshund”, as its distinctive T-shaped frame resembles the weiner dog breed, helping it stand out from Honda’s other minibikes like the Monkey and Cub.

Things get a little confusing in North America where the Dax was sold as the CT70 and, in 1973, when Honda offered the ST90 as the Trailsport. Today, Honda offers the Trail 125 in the U.S., but the new Dax is a very different vehicle.

The original 1969 Honda ST50 Dax.

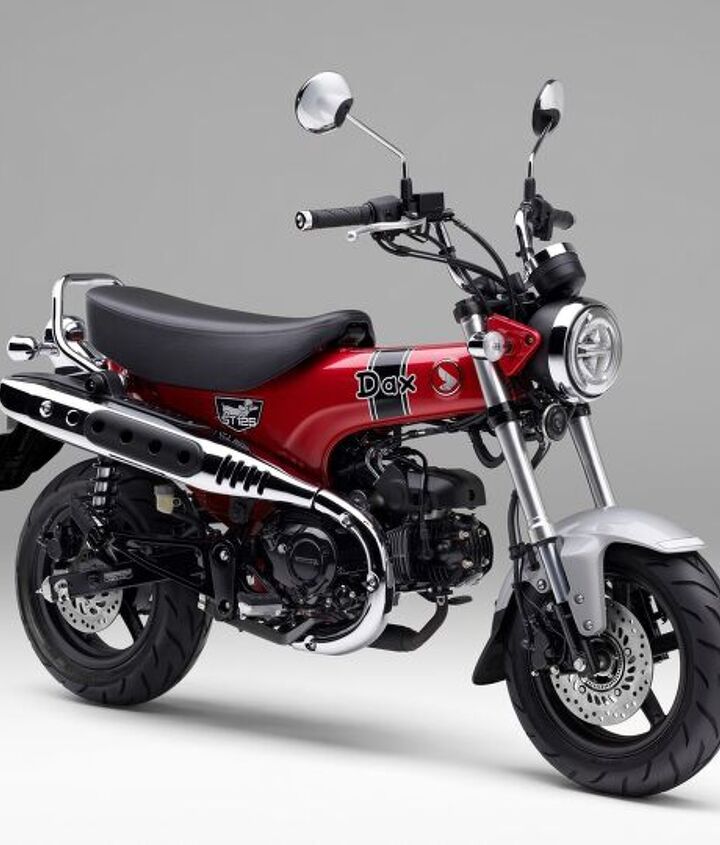

The modern Dax brings back the original’s design with a T-shaped pressed steel frame, thick seat, and tall handlebars. The original Dax ran on 10-inch rims, but the new model shares its five-spoke 12-inch wheels with the Grom. The high muffler design was first introduced in the 1973 Nauty Dax and brought back in the 1995 Dax.

The 2023 Dax is powered by a 124cc air-cooled SOHC Single inherited from the Super Cub. Honda claims a peak output of 9.3 hp at 7,000 rpm and 8.0 lb-ft. at 5,000 rpm, which it says should be enough to reach 55 mph even with a passenger. The engine is mated to a four-speed transmission with an automatic centrifugal clutch.

The backbone frame pulls double duty, serving as the chassis and housing the 1.0 gallon fuel tank. That’s a tiny tank, and at a claimed curb weight of 240 pounds, the ST125 Dax is relatively porky compared to the Monkey which claims 231 pounds with a full 1.5 gallon tank. Still, Honda claims the Dax can reach nearly 150 miles on that single gallon of gas.

A chromed oval-shaped airbox sits on the left side, opposite from the exhaust.

A 31mm inverted fork provides 3.9 inches of travel, while twin shocks provide 4.7-inches of rear axle travel. The braking system is comprised of a single two-piston caliper and 220mm disc up front with a single-piston caliper and 190mm disc equipped on the rear wheel. An IMU-based anti-lock braking system comes standard.


Other features include a 30.5-inch seat height, round instrument cluster with a negative LCD display, LED lighting, chrome fender, and chrome passenger grabrail.

The 2023 Honda ST125 Dax will be offered Pearl Nebula Red or Pearl Cadet Grey. We await word on U.S. availability.


2023 Honda ST125 Dax Specifications

Engine TypeAir-cooled SOHC 4-stroke 2-valve
Bore x Stroke50.0 x 63.1mm
Compression Ratio10.0:1
Max. Power Output9.3 hp at 7,000 rpm (claimed)
Max. Torque8.0 lb-ft. at 5,000 rpm (claimed)
Oil Capacity0.3 gallons
CarburationPGM-FI electronic fuel injection
Fuel Tank Capacity1 gallon
Fuel Consumption149.8 mpg (claimed)
Battery12V 3.5Ah
Clutch TypeWet Multiplate and Automatic Centrifugal Clutch
Transmission Type4 speed rotary
TypePress backbone frame
Length69.3 inches
Width29.9 inches
Height40.2 inches
Wheelbase40.2 inches
Trail3.3 inches
Seat Height30.5 inches
Ground Clearance7.1 inches
Turning radius6.7 feet
Curb Weight240.3 pounds (claimed)
Front SuspensionTelescopic 31mm USD fork, 3.9 inches of axle travel
Rear SuspensionTwin shock, 4.7 inches of axle travel
Front Wheel5-spoke cast aluminum
Rear Wheel5-spoke cast aluminum
Front Tire120/70-12M/C 51L
Rear Tire130/70-12M/C 56L
Front BrakeSingle 220mm hydraulic disc with IMU-based ABS
Rear BrakeSingle 190mm hydraulic disc
ABS TypeSingle Channel ABS
