Get the Flash Player to see this player.Nothing says ďmotorcycleĒ like a naked air-cooled sporty bike. They are little more than an engine with a couple of wheels tacked on at either end. No unsightly radiators and their attendant plumbing, and no plastic fairings hiding the mechanical bits Ė theyíre the epitome of elemental motorcycling.
But in this slice of moto-dom, there are a few different philosophies. Ducatiís Monster 1100 represents an Italian school of thought, with eye-catching styling that befits its country of origin. One of the originators of the naked sportbike movement, this new Monsterís abbreviated trellis frame pares down the bikeís visible components to a level that an untrained eye might wonder how the thing is held together.
The North American viewpoint is provided by Harley-Davidsonís new XR1200, an homage to the most American form of two-wheel motorsport, dirt-track racing. Other than its modern aluminum swingarm and triple-disc brakes, the XR appears as if it couldíve rolled off the pages of a Cycle News race report from the 1960s.
What we have here are two machines that are literally half a world apart in origin, and probably a galaxy apart in styling philosophy. Yet the commonality of simplicity Ė the simplicity of a no-nonsense air-cooled Twin as a power source Ė make the Harley-Davidson XR1200 and Ducati Monster 1100 brothers in arms.
The engines are the centerpieces of stripped-down naked bikes, dictating to a large extent both the bikeís style and the layouts of their chassis. Beautifully on display in both of these streetfighters are versions of the most iconic V-Twins ever produced.
The XR1200ís engine has roots that stretch back several decades, using old-tech elements like pushrod valve actuation for its two valves per cylinder. Ducatiís desmodue (two valves per cylinder) powerplant has its origins in the Pantah first seen all the way back in 1979, but it uses higher-tech bits than the Harley like belt-driven overhead camshafts and desmodromic positive valve closure. Both bikes have modern fuel-injection systems that deliver excellent throttle response and emissions compliance.

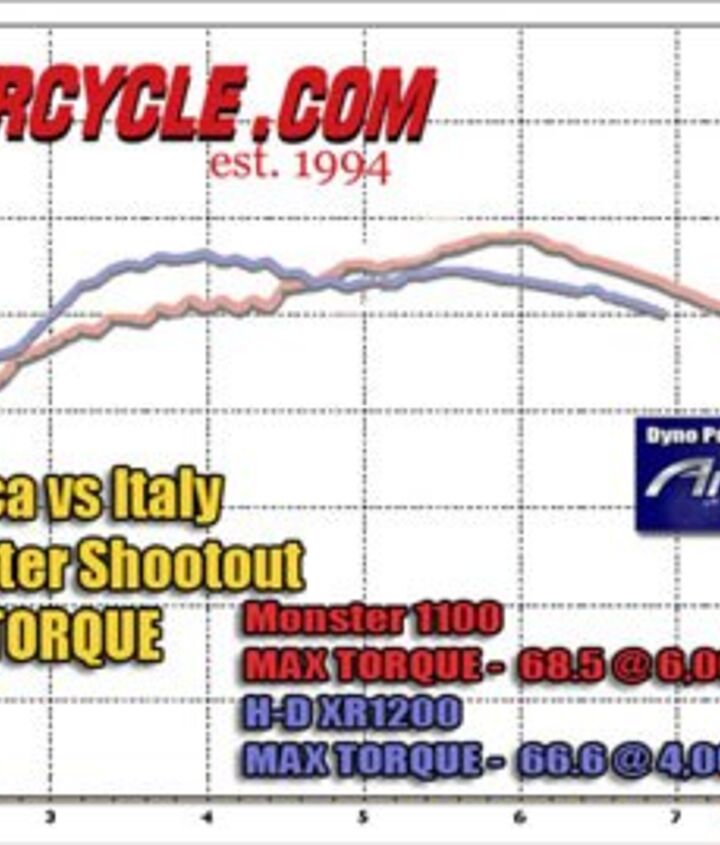

Given the Ducatiís slightly higher-tech valvetrain, it gives up a 125cc advantage to the Harleyís 1203cc motor to create a surprisingly even match-up. The key distinction is how the power is produced. The Harley delivers more grunt in the bottom end, as you might expect, especially around its 66.6 ft-lb torque peak at 4000 rpm. But the Ducís revvier powerplant gains an advantage once past 4700 rpm, resulting in 68.5 ft-lbs 2000 rpm higher than the XRís big torque number.

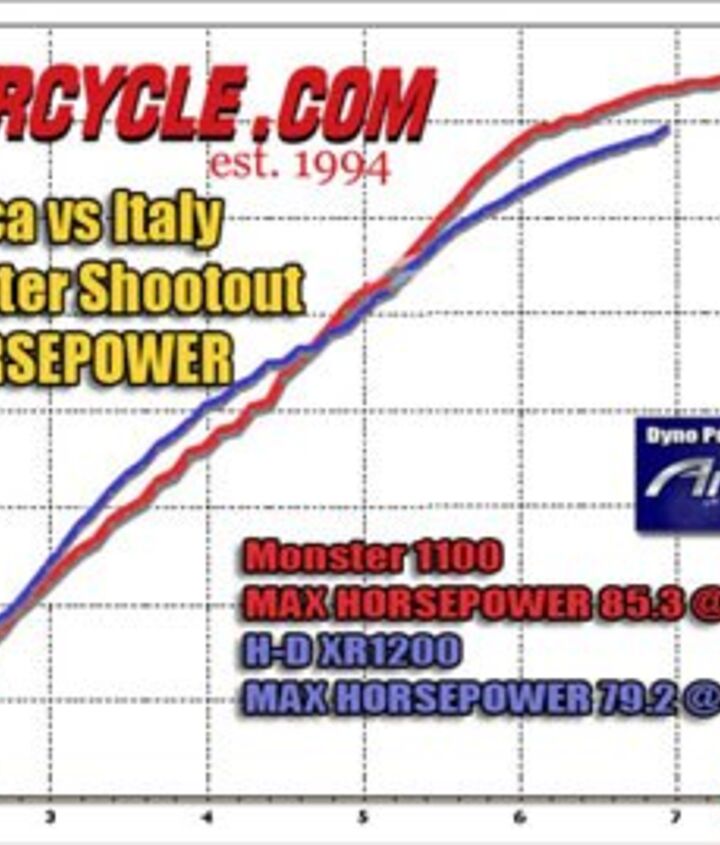

The Harleyís motor continues to gain horsepower as the revs rise, making its max ponies of 79.2 horsepower as it hits its 6950-rpm rev limiter. Meanwhile, the Monsterís mill continues pulling to its 7700-rpm peak of 85.3 horsepower and keeps on spinning all the way to an 8500-rpm rev limit.
These similar but distinct powerbands speak to a rider in different accents. The XR1200 pilot is encouraged to short-shift to surf the broad torque curve, revving it out only when maximum thrust is required. The Ducatiís snappier engine can be spun up higher to access its bigger numbers.
As such, the H-D has a sweet zone on its tach that you'll need to be in most of the time if you want to stay butt-sniffing close to the Duc. And unless you've a racer's heart that allows you to charge corners hard and carry speed out the other side, you can expect a little bit of tap dancing on the shifter to stay in that sweet spot.
Engines, especially this character-laden pair, are about more than the raw data they produce. For example, the Duc's lighter flywheel means the engine can spin up quicker which can also, at times, mean a more immediate smack of low-end torque. This makes delicate, minor throttle input a tad challenging at times, say, when making mid-corner line changes.
Conversely, the 'Muhrican's big ol' honkin' engine masses spin a little slower than the Duc's. The XR's bigger flywheel effect and good fueling equate to a deliberate yet friendly build-up of power. Steady as she goes. But that same flywheel effect also impacts shifting in the five-speed transmission. The big motor keeps a spinnin' after you've pulled in the clutch, which means smooth and quick shifts arenít as easy as with the Monsterís six-speed gearbox.
The other major distinction in the engine department stems from the arrangement of the twin cylinders. All modern Ducatis have their cylinders placed in an L shape 90 degrees apart. This architecture delivers perfect primary balance, which means that vibration is relatively smooth, allowing it to spin up higher.
In contrast, the Harleyís Sportster-derived motor has its cylinders arranged in The Motor Companyís traditional 45-degree Vee, which necessarily creates stronger vibes. This is most noticeable at idle where the XR shudders and shakes with such amplitude that it can almost blur a riderís vision while waiting for the stoplight to turn green. Rubber engine mounts introduced on Sportsters in 2004 do an excellent job at subduing unpleasant vibes at all cruising speeds.
Though the XR1200 rides on the same basic Sportster high-strength steel cradle frame as other Sporties, it does come with a brand-spankiní-new hollow cast-aluminum swingarm that Harley says is upwards of 40% stiffer than the typical box-section steel Sportster swingarm. Keeping the front wheel stuck to the ground is a non-adjustable USD 43mm fork.
Rear suspension is another area the XR stands out, but not so much in a good way. The twin coil-overs certainly do look the part of the past the XR draws its inspiration from, but they allow a little too much wiggle and wallow. And, as Kevin says, ďthe excessive high-speed compression damping from the twin shocks can jump-start a heart-attack victim while riding over big expansion joints.Ē
However, with sticky Dunlop Qualifiers (18-inch front, 17-inch rear) developed specifically for the XR, aggressive cornering is cakeÖ after youíve ground down, literally, some more clearance between the bike and road. The right-side footpeg feelers touch relatively early, and the heat shields for the twin upswept exhaust follows soon after.

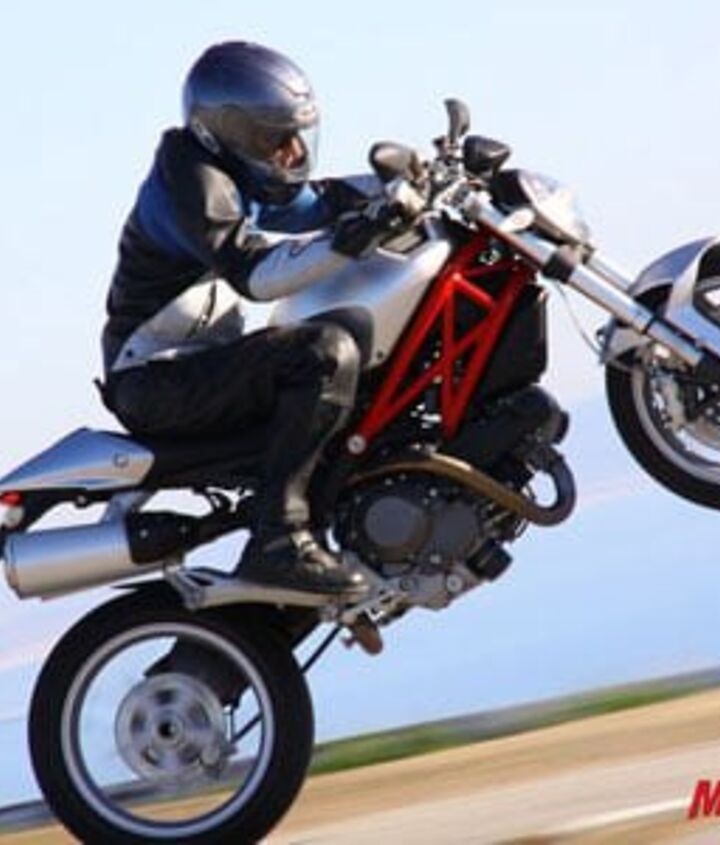

The Monster one-ups the Hog a bit by utilizing the same large-tube steel trellis frame as its smaller brother, the 696, a frame that is made from the same tube stock as the 1098R. A stout cast-aluminum subframe bridges the trellis to a sexy but strong single-sided swingarm via a link-less shock. The bottom line: this is one stiff chassis.
The fully adjustable 43mm USD Showa fork soaks up the rough stuff quite well. A Sachs shock performs admirably, too, but telegraphs some harshness, though only on large, sharp-edged bumps. A pair of Bridgestoneís BT016 tires adhere the Monster to the tarmac perfectly.
Differences in the bikes handling qualities mirror the general differences between each bikeís overall characters. Hindering the Harleyís performance is its porky weight. H-D says it scales in dry at 562 pounds. The Monster is claimed to be 189 pounds lighter!

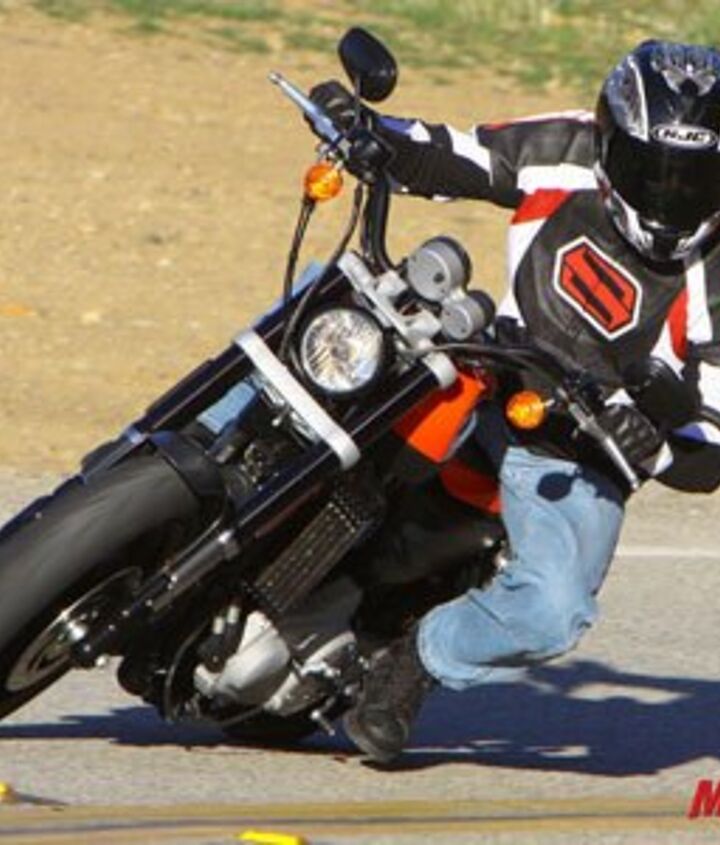

This serious weight disadvantage, nearly 3-inch longer wheelbase and a rake angle 5 degrees softer than the Ducís means it wonít handle nearly as lively. But with wide, upright handlebars, manhandling the Harley like, well, like a dirt-track rider might, is easy work. Shoving and pulling aggressively on the XRís bars, flipping back and forth between corners while sitting upright, helps mask a lot of its extra weight and mild geometry.
Contrary to the active ride on the XR, the Monsterís sporting nature equates to easy steering input and solid confidence. The Ducati can make you feel as though youíre on a magnetic rail, as it simply and without trouble follows the arc of the turn as though it knows exactly where you want to go. About our only chassis complaint is the 1100ís occasional propensity to shake its head vigorously if the front gets a little light, say from riding over an expansion gap on the freeway while hard on the gas. A steering damper would make a nice gift for the holidays.
The Milwaukee-based Motor Company came up a winner when it introduced optional ABS-equipped Brembo power on its touring models over the past couple years. Now with the XR, Harley sincerely seems to be catching up to the rest of the sportbike world in terms of brake performance.
Thereís no question the XRís Nissin-made binders crush down mercilessly on the 292mm rotors, but their strong initial bite will certainly catch a few people by surprise if theyíre accustomed to a typical Harley stopping experience. The brakes provide heaps of power, yet not enough sensitivity to match; locking the front is all too easy. Better than not stopping well, we guess.
A pair of radial-mount 4-piston Brembo calipers and 320mm rotors similar to the 696 slow things down on the Monster 1100, but as Kevin noted from the Ducís launch, ďit adds a radial-pump master cylinder to send fluid through its braided-steel lines, which Ducati says offers the same stopping power with 17% less lever pressure.Ē
And thatís the key difference in braking: The Monster offers better feel than the Harley, though both stop with similar force. Adding the XRís powerful rear brake to the equation considerably aids its ultimate stopping distance.
Instruments/Controls/Fit Ďní Finish
In keeping with the simplistic theme of a dirt-tracker, the XRís instrumentation has a basic analog tach and very visible LCD speedo, rounded out with the usual array of idiot lights. ďThe XRís instruments offer a paltry amount of info compared to the Ducatiís comprehensive gauges,Ē Kev noted. Indeed the Ducís one-piece LCD tach and speedo are but a small part of the offering on tap in this race-bike-like gauge package thatís nearly identical to the 1098.

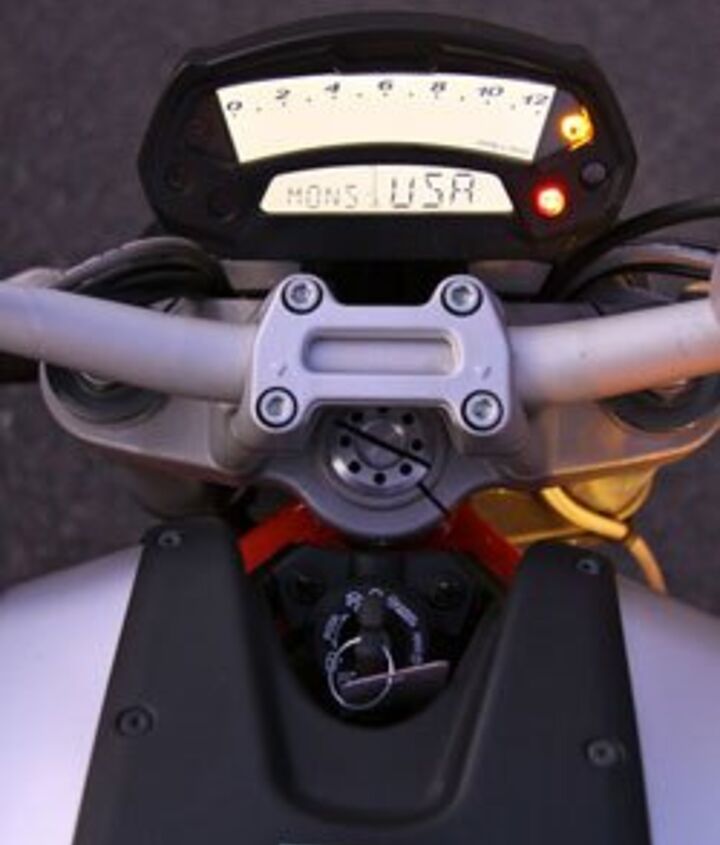

The Ducís DDA-ready (Ducati Data Analyzer) gauges employ a digital tach thatís easily read, and all info is toggled from one switch on the left switchgear. Unfortunately, it seems one thing hasn't changed for Ducati: the lack of an indicated redline. Clutch action is moderate if not light on the Duc, and all its levers and switches are slim and trim yet arenít flimsy.
The Harleyís clutch and brake levers are big and wide; a comfortable grasp is the result. We really liked the rounded and well-integrated switchgear, but Kevin found a nit to pick in another area. ďThe rear brake master cylinder forces a riderís right foot outboard several inches more than the left side.Ē
Because the Duc is an Italian, like most Italians itís pretty well buttoned-up in terms of unsightlies being kept out of sight, a situation much improved over the previous generation of Monsters. The Harley, on the other hand, leaves a little bit to be desired in the Fit and Finish department. A couple of bolts here and there could use hiding or a simple cover of some type, and though it isnít necessarily ugly, the oil cooler mounted on the left-side frame downtube is conspicuous. Makes us nervous, too, thinking what might happen to it in a minor crash.
The standard-style upright riding position of the XR means youíre not hunched over or leaned forward for too long. The reach from the saddle to the wide flat-track-inspired bars is easy, though the seat-to-peg relation may seem a little tight for those over, say, six feet tall. This riding position lends to muscling the bike around the canyons, as noted above, but also means commuting or casual riding is comfortable. Freeway windblast can be a bit of problem, as the bike really doesnít offer any protection, but weíve ridden worse.
Getting into corner-attack position is easier and more natural on the Ducati, not to say itís uncomfortable. Seating position is still very much standard-style, but the bars are flatter and the pegs feel higher and more rear-set (which is also why the Duc as great ground clearance). Surprisingly, a 40-plus-mile freeway stint is remarkably easy despite a dearth of wind protection much like on the XR.

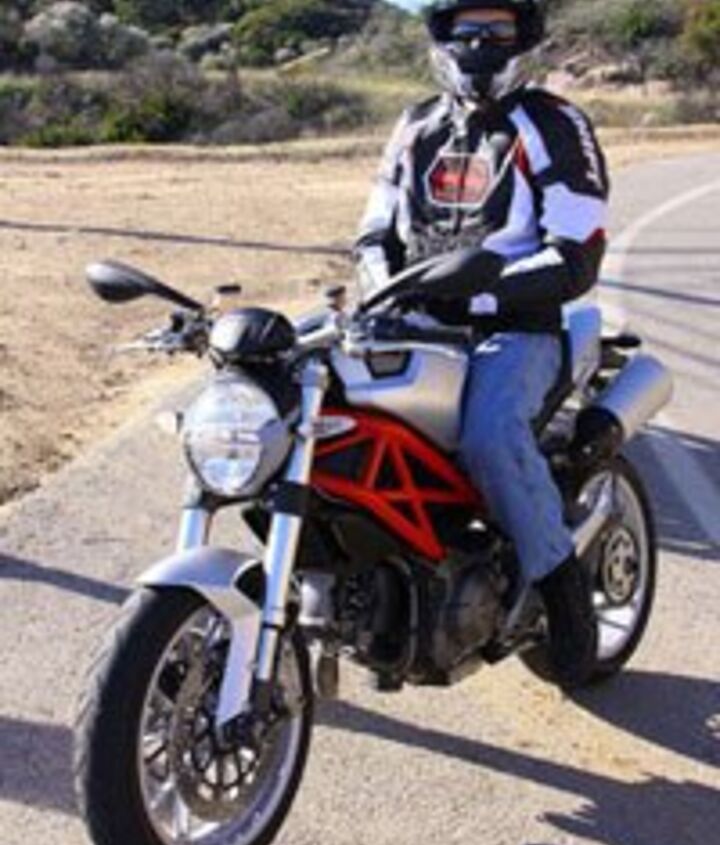

Finally, though the Duc has a higher ride height via increased stroke in the fork for more ground clearance than the Monster 696, putting both feet flat at a stop is a cinch on the big Monster. Anyone with an inseam of 28 inches should feel at ease. The touring capabilities of the 1100 and XR are limited by diminutive fuel tanks, 3.8 and 3.5 gallons, respectively.
As far as weíre concerned thereís no denying the XR1200ís cool factor. Itís the first production Harley to successfully mimic the dirt-track dominating XR750! Sure, weíve heard a few whiners out there say the tailsection is too big and needs to be trimmed, or that some type of side-mount carbs or throttle bodies would really make it look like a 750 racer. Bahhh! We say, especially in the orange color scheme, the XR1200 looks great and taps into the visceral draw of Harleyís unmatched flat-track racing heritage.
The Monster is unquestionably an attention-getter. The boldness of the trellis frame is countered by the sexy single-sided swingarm exposing the sinewy rear wheel and the round, soft lines of the faux-fuel tank blend-in well with the sweeping seat. Yep, itís a lust-inducing Italian creation. And it has the performance package to go with its svelte streetfighter good looks.
Americans and Italians speak different languages, and this carries over to the design languages of motorcycle manufacturers. Ducatiís rich sporting heritage is evident in the Monster 1100ís more exuberant personality. Its lighter weight, shorter wheelbase and revvier motor give it an edge in strict performance terms.
On the other hand, Harleyís XR1200 brings a fresh take on the naked roadster. Its success lies in the fact that it attracts sport riders and Harley faithful in equal measures. Its dirt-track inspiration resonates with a huge cross-section of two-wheel enthusiasts, and this broadband appeal and friendly nature places the XR in an enviable position during normal city/commuter use. Itís also about $1200 less than the swanky Italian.
Still, although itís the highest-performance H-D ever offered for mass consumption (sorry, the ill-fated and semi-street-legal VR1000 doesnít count), the XR1200ís rangier wheelbase and extra poundage means that Ė given equal riders Ė the XR canít hang with the more agile and lively Monster down a twisty mountain road.
Some say potato-potato; some say patata.
