A reading from the book of Brent: “Newbie riders should simply skip the TL and go straight to the morgue.” Life in those days, brethren, was nasty, brutish and short – and Ducati wouldn’t loan us a motorcycle then, either. Minded did we not, though, as the Honda VTR1000 SuperHawk and Suzuki TL1000S provided plenty of thrills for our illustrious founder and testing apostles. In those days, too, the video was discovered,  though the links seem to have broken somewhere in the mists of time. And so it is written.


Sport Twins 1997

Where’s the Duck?

It doesn’t take a college education to understand the inspiration for Honda’sVTR1000F and Suzuki’s TL1000S. Ducatis have won six of the last seven WorldSuperbike championships, in the process capturing the coveted Manufacturer’s Title for the past six years straight. With their powerful, torquey V-Twin powerplants, Ducatis are able to drive harder out of corners than other manufacturers’ racers with their peaky inline-four mills. After years of trying in vain to beat the Italian marque, Honda and Suzuki have decided it’s time to join ’em.   A Japanese manufacturer imitating a successful competitor isn’t new or surprising. How they came to produce two similar, yet truly unique machines is: While Suzuki has taken direct aim at Ducati’s ultra-sporty and uncompromising 916, Honda seems to have modeled their VTR more after their highly acclaimed — but slow selling — VFR750 than anything Italian. Who was more successful in their approach? You just might be surprised. 2. Honda VTR1000F

Another tough day on the job at MO: Sport Twin testing at The Streets of Willow. We only wadded one of them...
It takes a bike as good as Suzuki's TL1000 to keep Editor-in-Chief Plummer ahead of Chuck Graves.
Honda's side mounted radiators offer the same cooling area as standard coolers -- without airflow dead spots.
On-board video shows the TL1000's fake carbon fiber dash sticker. Say "cheese."
Honda's gas-guzzling V-Twin sports 48mm carbs, the largest ever fitted. Suzuki's fuel-injected TL1000 breathes through a pair of 52mm throttle bodies.

Super HawkV-Twin fans have been begging Honda for a larger version of the discontinued 650 Hawk GT since that model’s introduction in 1988. With theVTR1000F, Honda has finally given them what they wanted. While the Hawk used a traditional beam-style frame, the VTR is equipped with a combination of aluminum beam and trellis frame to support its new mill. Honda engineers have stated that rear wheel input to the chassis can cause front wheel instability in a typical beam frame design — an “echo effect.” Thus, Honda claims the VTR’s frame has been designed to cancel this problem. Does it work? We guess so — the Honda is much more stable that Suzuki’s TL1000.Honda shines in other areas, too, notably the styling department. Its attractive fairing — which resembles the upper unit from a CBR-F3 — is far better looking than the Suzuki’s Ducati imitation. Similarly, the VTR’s nicely sloped tail section is miles ahead in terms of styling than the pimple-shaped unit on the TL.

Different design philosophies between the two manufacturers are apparent the first time you swing a leg over these bikes. Suzuki’s TL folds its pilot into an aggressive riding position with high pegs and clip-ons mounted under the triple clamps. Honda’s VTR, while still sporty, features a more upright riding position, is a little more roomy and places less weight on the rider’s wrists. Sitting on the Honda for the first time is quite surprising: With its twin side-mounted radiators and slim frame, the VTR feels more like a bike half its size.With ten fewer ponies than the TL, a longer wheelbase, lower seat height, and a more rearward weight bias, the VTR isn’t as wheelie prone as its Suzuki rival. This isn’t to say the Honda isn’t capable of such antics, however, because an extra twist of throttle and snapping of the clutch will send its front wheel skyward with ease. But the Honda’s smooth, linear powerband makes it feel far less potent than the bucking TL, and it is: At Los Angeles County Raceway our VTR clicked off an impressive 10.83 second quarter-mile at 127.32 mph, compared with 10.53 at 133.06 mph for the TL. This may not sound like much, but 3/10ths of a second in the quarter mile means one bike “walks away” from the other.

Throw in some curves though, and the margin closes. During our racetrack testing at The Streets of Willow, the VTR trailed by less than a second. Although the Honda’s 41mm fork is 2mm narrower and lacks the compression adjustability of the TL’s inverted unit, it tracks through both slow and fast corners with a remarkable sense of stability. Out back, its rear damper is also devoid of compression damping, yet manages to do a decent job of soaking up pavement irregularities, as long as speeds aren’t too high. When the going gets fast, the VTR’s soft, street-based suspension, chassis flex and limited ground clearance becomes a concern. Honda makes no bones about this, though. They’ve clearly stated the VTR’s mission in life is not to be a racing platform. They would rather trade off that extra edge of track performance for real world comfort. We think they’ve succeeded.

What we have here is a bike that can almost hold its own at the racetrack and dragstrip, is great fun around town, commuting or on the freeway and a blast to ride in the canyons. But in this test it finishes second. What gives? Suzuki’s TL1000, that’s what.

1. Suzuki TL1000S


A view to a kill: Send Shawn Higbee out for some “exciting video footage” and he gives us an on-board highside flic. Maybe we should’ve been more specific…While Honda already has a history of V-Twin sportbikes, Suzuki is working with a fresh mold. Although judging by the looks of their frame, headlights and fairing, they did have some Ducati blueprints to work with. Too bad they didn’t copy the 916’s seductive tail section though.

Shawn "Highside" Higbee exploiting the TL1000's ample ground clearance. Suzuki's contender is clearly a winner when the going gets twisty.

Once the fashion show is over — and we’re all done gagging — we’re ready to ride. Thumb the Suzuki’s start button and immediately you’re rewarded with a pleasing mechanical medley from its chain/gear driven cams that invites mindless throttle blipping at intersections. Click the six-speed gearbox into first, give it some gas, let out the clutch and, if you’re like us, the bike stalls. Below 2,500 rpm, Suzuki’s fuel-injection isn’t mapped out as well as we would like — a problem compounded by an ultra-light flywheel — causing some awkward moments.Once you’ve successfully pulled away and have found a wide open stretch of pavement you’re in for a treat. Wringing a TL to redline is an experience not to be missed, and not for the faint of heart. With 114 horses on tap and an arm-stretching 72.6 ft-lbs of torque, the TL rockets forward with the velocity of an open-class sportbike. Plus its lofty seat height and short (55.7 inch) wheelbase combine to make the TL a wheelie monster. Accelerating hard through first and second gears will loft the TL’s front wheel every time, making for constant grins on twisty roads where the TL pilot can square off a corner and wheelie to the next.

Shawn "I'll Smoke You On One Wheel" Higbee en route to a 12.8 second, 104 mph quarter mile wheelie.

Suzuki’s TL is also an excellent weapon for racetrack use. With its steep steering head angle and short trail (23.7 degrees and 3.7 inches, respectively), it eagerly flicks into corners. The TL has more weight biased towards its front than the VTR, making a TL rider more in touch with what the front wheel is doing. Out back, Suzuki’s rotary shock does a good job of soaking up bumps, although our testers generally felt it didn’t perform as well as a conventional unit. Initial concerns about where TL owners would turn if they didn’t like the shock’s damping may be dismissed, as at least one aftermarket company has plans to market a unit for the TL.

If you can't wheelie a TL1000, you suck.

When it comes to comfort, Suzuki’s TL isn’t that far behind the Honda, although one of our taller testers hated the squared-off, wide tank that puts pressure on the inside of his legs. As a pure streetbike, the TL can’t match the VTR in the comfort zone, but it shouldn’t be pegged as an unridable race-replica either. Droning along the freeway for a couple of hours is no problem, although commuting in today’s urban traffic will hurt your wrists (unless you’re riding wheelies the whole way, but that’s illegal, and you wouldn’t do that, would you?).Bottom line? While Honda’s VTR is a smooth, comfortable sporting motorcycle that is also pretty quick around a racetrack, Suzuki’s TL is a powerful, rowdy canyon carver with an excellent chassis that’s damn close to a 916 in terms of feel and handling. And it’s also not too bad in the real world of traffic and freeways. You can weight your opinion where you like, but for our money we’ll take the sharper sportbike – Suzuki’s TL1000S.

Technical Overview: Suzuki TL1000 Rotary Shock
Rotary Dampers: The Coming Trend, Or Exotic Screen-Door Closer?
By John Olsen, Contributing Writer

So what’s up with Suzuki? This relatively quiet company, noted for occasional flashes of brilliance followed by long periods of technical sleepiness seems to have become a technological Godzilla. Recent examples include the dominant redo of their GSXR-750 and its smaller brother, the GSXR-600. And perhaps most astonishing of all, the TL-1000S with its upside-down forks and fuel injection. This Ducati 916 clone provides, at least on paper, most of the cutting-edge technology of the vaunted 916, but at 9/16ths the cost.

One technological feature that might help Suzuki compete with the all-conquering Ducatis is the novel rotary damper. Suzuki chose to separate the functions of springing and damping for this motorcycle. Why blaze a seemingly new path – a path that could be littered with unknown land-mines? Why not stick with the well-understood blessings of today’s universal sport-bike rear suspension — the linkage-actuated, coil-over-damper, single shock rear end? After all, the status quo ain’t bad.

An obvious answer lies in a central problem of modern motorcycle design: Packaging. The latest school of race-bike design calls for much of a bike’s weight to be carried by the front tire and for a short wheelbase that works with a steep steering head angle to give quick handling. Get enough weight on the front tire, and you gain several vital advantages: The bike can accelerate harder without wheelying, allowing steering corrections under acceleration. Also, the more weight the front tire carries, the harder it can be turned without exceeding reasonable slip angles. A longer wheelbase increases a bikes turning radius, meaning more lean angle is required to maintain cornering speed. Also, rider inputs or bike responses to bumps happen more slowly.

A longitudinal, 90-degree V-twin, like the TL, any twin Ducati, or the Honda VTR1000, presents a packaging challenge. Rock the engine forward, and you run into clearance problems between the front wheel and radiator. Rock it back, and the rear cylinder takes up valuable volume that could be used for the battery and the electrical system, or the shock absorber. The result is that 90-degree V-twin sport bikes tend toward the long side, with the TL and 916 shortest at 55.7 and 55.6 inches, respectively, and the VTR and the 900SS at 56.3 and 56.4. The VTR tries to minimize the wheelbase penalty by running twin side-mounted radiators, allowing the engine to come as far toward the front tire as fork travel and flex allow.

Suzuki achieves a relatively forward weight bias and a moderately short wheelbase by clever engine and head design (the cam drives and cam layouts in the heads are specifically designed to permit the engine to live closer to the front wheel). Also, placing miscellaneous stuff in the space where Ducatis and Honda place their rear shocks allows for a tighter, trimmer package.

So where does the shock go? Suzuki, teaming with Kayaba, opted for a solution that has actually been used before in huge numbers — the lever-actuated, rotary-acting, hydraulic shock. While many people will credit Suzuki for inventing this design, a damper of similar concept, the Houdaille, has been used on vehicles ranging from sports cars to trucks since the early days of damped suspension.

Suzuki’s rotary shock gives them some advantages in addition to a shorter wheelbase. One is heat dissipation. Perhaps the major enemy of any damper design is heat build-up. Damping is just conversion of some of the mechanical energy generated by the motorcycle bouncing on its springs into heat energy. Since hydraulic fluids and rubber seals can’t operate at high temperatures, this heat has to be dissipated, or the damper will work poorly.

The TL’s aluminum damper body has more mass than a tubular shock, and this mass in itself will absorb heat from the damping fluid until it is just as hot as the fluid. In fact, early testers report that the damper stays cool to the touch, even during hard track sessions, something you can’t claim for the typical tube shock design.

Relative motion between the moving parts in this damper consists, obviously, of rotation. Two good things happen with rotational, rather than telescoping, motion: Rotating joints between the damper body and shaft are easy to seal and keep clean, and you can use rolling-element bearings rather than bushings between the two parts. Both changes make reduced friction likely in the TL’s damper, which has no exposed sliding surfaces. In contrast, conventional tubular shocks have a potentially dirty shaft sliding into and out of a seal, and such shocks are subject to bushing side loads. Both sources of friction increase the force needed to get the suspension moving.

However, rotary dampers still employ sliding seals to separate the working volumes inside the damper. Two rubber-tipped metal vanes mounted to the rotor seal against the inner diameter of the damping body, trapping damping fluid between themselves and another two vanes fixed to the damper body’s inner diameter. These vanes, in turn, must seal against the rotor’s outer surface. As oil is compressed by the two rotor vanes, it travels through ports to either the rebound or compression valve and washer stack. The damping orifices and valving work exactly the same way they do in a conventional shock. A small, pressurized gas chamber ahead of the rotor is only there to compensate for the thermal expansion of the oil as it heats up, as there is no rod volume to accommodate as on a telescopic damper.

Suzuki's fuel-injected, 90-degree V-Twin pumps out a class-leading 114 bhp.

It is in the sealing that a potential dark side of the rotary hydraulic damper lurks. Any leaks mean a loss of damping, just as they do in any hydraulic shock. All of the vane seals have to seal a rectangular area, and this is tougher than the annular area that a typical telescopic shock seal must cope with. Why? The rectangular area between the rotor and damper body has sharp corners that want to warp or bend, especially when the movement is in both directions. It is likely the assembly precision necessary to get the vanes to seal perfectly is what caused Suzuki and Kayaba to declare the damper non-serviceable.Since the sizes and volumes of the working chambers aren’t limited by the size of a coil spring’s inner diameter, the TL’s damper can pump a lot of oil. This high flow rate could be taken advantage of to make precise and fine damping adjustments easier than with the more-constrained tube shock design. In fact, the damping adjustment screws (compression on one side, rebound on the other) are quite easy to get at, with no remote mechanisms required.

As the damper is actuated by its own linkage, it can be set up for different rate rise than the spring. For instance, it would be possible to design the linkage so that the spring got stronger and the damper weaker as the suspension reached full bounce travel, or vice versa. This example is patently silly, but the separate linkage does offer unique (and potentially bewildering) tuning options if a serious tuner is willing and able to design and build new links.

Suzuki has given the TL’s damper a fairly flat-rate linkage so that damper strength stays fairly consistent with travel, while the spring has a progressive, or rising-rate design.

The biggest downside to the rotary damping concept might just be the total lack of a fall-back position. Think about it: If you don’t like the Kayaba or Showa shock in your traditionally-damped bike, you can choose from a number of alternative shocks from reputable aftermarket vendors. If you dislike the TL’s rotary unit, you’re up the creek without a damper — at least until the aftermarket starts producing shocks for the TL.

Suzuki has gone out on a limb with this design, but for some good reasons. We hope the limb turns out to be a strong one, for there are some clear advantages to the rotary design, and they help make Suzuki’s TL the stunning bike that it is.




Specifications, MPEGs, and Additional Photos:

Sport Twins #1: SuzukiTL1000S

Our staff was divided on the TL’s looks, with some appreciating it’s “aggressive styling,” while most others found it as ugly as a hairy backside.
Front brakes are 320mm dual discs up front equipped with Tokico four-piston calipers. Performance is impressive if you can keep the front wheel on the ground long enough to use them.
The TL1000 features Suzuki’s first mass-produced aluminum truss frame. It’s extremely compact and offers exceptional torsional rigidity in a lightweight package.
A built-in back torque limiter “slipper clutch” system prevents the rear wheel from locking and chattering on aggressive downshifts. The inner clutch hub has a separate stud plate that bolts to the clutch pressure plate (the outer plate, at right, with five radial holes in it) and rotates on a angled cam. When you’re on the throttle, the cam pulls the clutch plate in to keep the spring tension at maximum, when you roll off the throttle, the stud plate rotates back and outward on the cam, releasing spring pressure and allowing the clutch to slip on deceleration.
 “Feels like your ridin’ a GP bike!”
 The TL’s wide tank splays the rider’s legs outwards, negating the narrow feel offered by its V-twin powerplant.

View all VideosPHOTOS & VIDEOS

  • Rocky Stonepebble

    Back in ’97, I would have killed my mother for either of these two bikes. But, since mommycide doesn’t pay well, and that was the year I split with my lovely and talented wife (death to satan wife!) I did not have any money.

    Would still love to find one in good nick.

  • mikstr

    18 years and 160,000 miles on, LOVE my VTR (great building block/foundation for a truly awesome street bike)

    • Craig Hoffman

      Wow. That is truly impressive Honda durability!

      • Sayyed Bashir

        Almost as good as my Harley with 10 years and 160,000 miles.

        • Jon Jones

          Oboy…

        • Born to Ride

          Technically it’s better since the bike is older. Any vehicle that is operated more frequently will have more trouble free miles.

          • Jon Jones

            Sayyed just has to story-top everyone, as you know.

        • TC
        • mikstr

          yes, but 10 years and 160,000 miles on, yours is still a Hardley, lol

          • Rocky Stonepebble

            Hockey.

          • Born to Ride

            No, it’s about as good as riding a wave runner, that snow bike thing that those hooligans built out of a YZ450r, now that looks as good as riding bikes.

    • Born to Ride

      Now that’s a man who loved his girl.

  • Mad4TheCrest

    VTRs were/are thirsty beasts. I remember a fair few owners parked at Newcombs opening gas caps, staring worriedly into their tanks, and asking for the tenth time how far it was to the station at the bottom of the mountain.

    I never heard feedback on this topic from the rare TLS owners i’ve met.

    • Terry Smith

      My understanding with the rotary damper design was that the oil volume and flow was very small compared to a traditional linear piston damper. That made the oil more prone to heating up and losing viscosity, and the small oil flow meant tiny ports and tight shim stacks were needed which also were more difficult to manage with heat.

  • Terry Smith

    I have a 97 VTR1000 sitting in my garage, with an Ohlins shock with a ride-height adding spacer, reworked forks and brakes and gutted stock pipes. It is very hard to beat for grin-inducing antics, gets around corners with ease and still has that relaxing, loping v-twin cadence. On an open-road cruise it is not bad on gas either and will do 155 miles until the Yellow Eye of Doom (low fuel sensor light) tells me the party will soon be over.

  • Craig Hoffman

    I had a ’97 TLS with a Lockhart lower fairing, Yoshimura full exhaust, Lindemann valved forks with stiffer .95 springs (stock was .74 if I recall right, stupid soft anyway) and a Penske shock on it. The bike had -1/+3 gearing.

    Set up this way, the TLS was an absolute riot and it sounded awesome. I am still alive too, despite riding what were probably miles of wheelies over the 9 years and 35,000 miles I owned the TLS. Good times…

    A grainy old photo of me and my TLS then, taken at Valyermo, CA.
    https://uploads.disquscdn.com/images/84a9a6ca58fad91e89c8e20fba4d29886e3fe5d014a0dc2e551ed108c57467ac.jpg doing what it did best 🙂

    • Born to Ride

      9 years and only 35k miles? You must not have liked that girl very much man!

      • Craig Hoffman

        Rode it a lot early on, then I had kids, which slowed me down some. Also had dirt bike and other toys.

        The TLS was a favorite though. Was lucky the wife let me keep it. Here is my daughter, being introduced to the boys, TLS on the far right 🙂 https://uploads.disquscdn.com/images/798f6bb604208f98bd5d8ccd455c4ccbc70b78bed48833866e88167487bd4813.jpg

        • Born to Ride

          That’s a beautiful family you had there my brother.

      • Donna

        Google is paying 97$ per hour,with weekly payouts.You can also avail this.
        On tuesday I got a great new Land Rover Range Rover from having earned $11752 this last four weeks..with-out any doubt it’s the most-comfortable job I have ever done .. It sounds unbelievable but you wont forgive yourself if you don’t check it
        !da146:
        ➽➽
        ➽➽;➽➽ http://GoogleOnlineEasyMarketTechJobsOpportunities/easy/jobs ★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫★★✫★✫:::::!da146luuuuu

  • Alaskan18724

    Those were good days. I was hot for an Interceptor, but couldn’t have one because I hadn’t split from my wife. Then Interceptors weren’t really Interceptors anymore, and it was all downhill from there. Until now….

    • Rocky Stonepebble

      Was that a dig?
      😉

  • JMDGT

    I started frequenting the MO site right about the time this article was published. The comment section was and is legendary. I believe it cost five dollars to post a comment back then. I don’t remember reading this but I do remember flirting with the idea of buying this Honda at the time. I thought the gas tank too small of all things. Thanks for the memories.

    • Born to Ride

      5$ per post or for a subscription?

      • JMDGT

        A subscription. You couldn’t post otherwise.

        • Born to Ride

          Ah I was gonna say, I owe MO like ten grand or something. Haha

          • JMDGT

            I didn’t post anything until the early 2000’s. Some of the comments were brutal. It was hysterical. I think you can still see some of those old posts in the forum section. A lot of guys had problems with their id’s and had to change them over time. They’re still around. Some of the names have been changed to protect the innocent.

          • Sayyed Bashir

            “Some of the comments were brutal.” Not anymore 🙂

  • TC

    Sporty twins, expected to see the BMW R1100RS.

    • JMDGT

      I’ve got a R1150RA. It’s sporty enough for a standard 500lb. plus machine with shaft drive but is a far cry from my CBR600 and VFR800 that I owned prior to buying it. I know it is not a RS but it keeps up with some of the sportier bikes out there. It is nothing like my Street Triple. I also have a RT but have often thought about selling it off for a new RS. I have always liked the RS version.

  • Vrooom

    The TLS was a great bike, and that motor spawned the V-Strom and SV series (at least the 1000). Everything about the Suzuk was perfect imperfection, the throttle seemed abrupt, which just put a smile on your face, the suspension too soft but that made wheelies easy, etc.. The low RPM fueling was an issue, but give it some revs and away you went from a start. I did burn through clutches fairly quickly, 30K miles or so.

    • Rocky Stonepebble

      “and SV series (at least the 1000)”

      That’s the one I owned. Can never find any photos of it.

    • Craig Hoffman

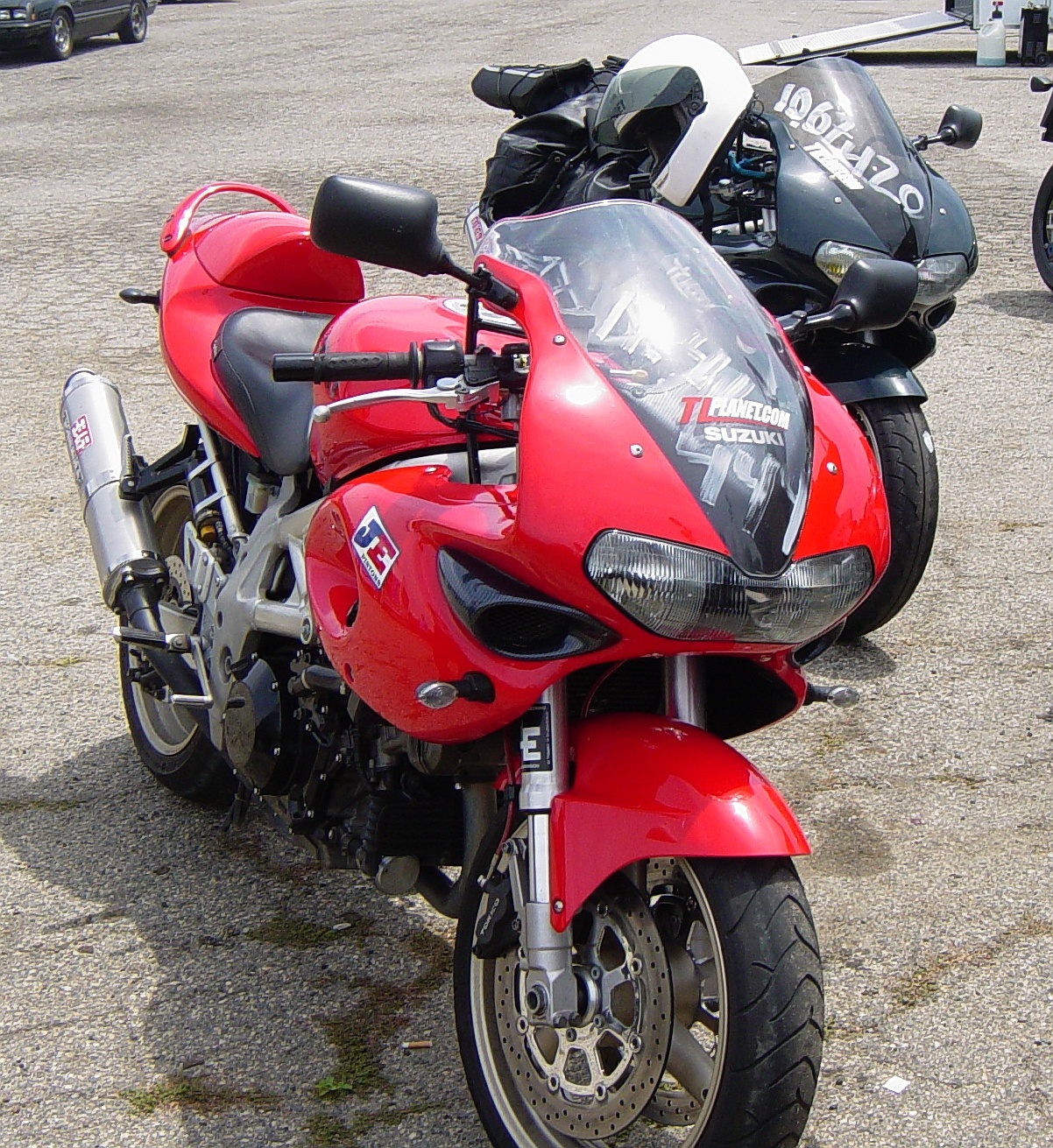

      I do remember putting Barnett springs my clutch. They were a lot longer than the stock ones, made the clutch stiff, but drag strip worthy! My buddy’s green TLS had a longer swingarm and modified engine. It ran 10.67’s like clockwork. He did bracket racing with it and won his class. Photo taken at Carlsbad, back around 2000 I think.
