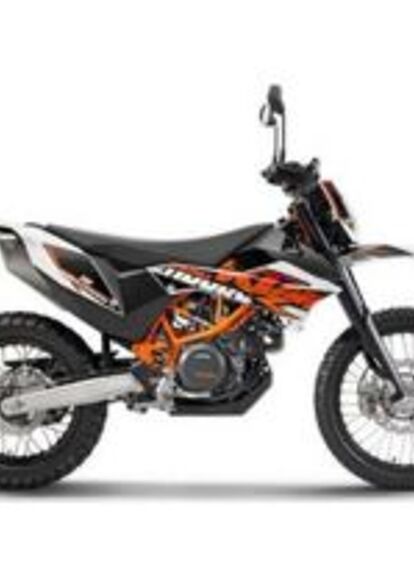

2015 KTM 690 Enduro R

2015 KTM 690 Enduro R pictures, prices, information, and specifications.
Model Type
On-Off Road
MSRP
$0
Dealers
Warranty
12
Insurance
Finance
Generic Type (Primary)
On-Off Road
Manufacturer Country
Austria
Introduction Year
2009
Manufacturer Recommend Minimum Age
16
Parent Company
KTM
Display Name
690 Enduro R
Year
2015
Make
KTM
Engine Brand Name
LC4
Engine Type
Single-Cylinder
Cylinders
1
Engine Stroke
4-Stroke
Horsepower (bhp/kW)
66 / 49
Cooling
Liquid
Valves
4
Valves Per Cylinder
4
Valve Configuration
SOHC
Bore (mm/in)
102 / 4.02
Stroke (mm/in)
84.5 / 3.33
Displacement (cc/ci)
690 / 42.1
Compression Ratio
12.6:1
Starter
Electric
Fuel Requirements
Premium
Fuel Type
Gas
Carburetion Brand
Keihin
Fuel Injector
Yes
Carburetor
No
Carburetion Type
Fuel Injected
Transmission Type
Manual
Number Of Speeds
6
Overdrive
Yes
Primary Drive (Rear Wheel)
Chain
Gear Ratio (1/2/3/4/5/6)
2.5 / 1.75 / 1.33 / 1.1 / 0.96 / 0.87
Reverse
No
Wheels Composition
Aluminum
Tube / Tubeless
Tubed
Front Tire Width
90
Front Tire Aspect Ratio
90
Front Tire Speed Rating
54S
Front Wheel Diameter
21
Rear Tire Width
140
Rear Tire Aspect Ratio
80
Rear Tire Speed Rating
70S
Rear Wheel Diameter
18
Front Tire (Full Spec)
MT 90/90 R21 54S
Rear Tire (Full Spec)
MT 140/80 R18 70S
Brake Brand Name
Brembo(R)
Front Brake Type
Disc
Front Brake Diameter (in/mm)
11.8 / 300
Rear Brake Type
Disc
Rear Brake Diameter (in/mm)
9.5 / 240
Anti-Lock Brakes
Standard
Linked Brake System Front to Rear
Standard
Front Suspension Type
Inverted Fork
Front Suspension Size (in/mm)
1.9 / 48
Front Travel (in/mm)
9.8 / 250
Front Adjustable Fork Pre-Load
Yes
Front Adjustable Rebound Damping
Yes
Front Central Suspension Strut
No
Front Suspension Brand Name
WP
Rear Suspension Type
Twin Sided Swing Arm
Rear Travel (in/mm)
9.8 / 250
Rear Adjustable Shock / Spring Pre-Load
Yes
Rear Adjustable Rebound Damping
Yes
Number Rear Shock Absorbers
1
Rear Suspension Material
Aluminum
Air Adjustable
No
Steering Control
Handlebar
Wheelbase (in/mm)
59.2 / 1504
Ground Clearance (in/mm)
11 / 280
Dry Weight (lbs/kg)
315.3 / 143
Fuel Capacity (gal/l)
3.2 / 12
Fuel Capacity Reserve (gal/l)
0.7 / 2.5
Engine Displacement to Weight (cc)
2.19
Seat Type
One-Piece
Adjustable
No
Seat Material
Vinyl
Seat Location
Driver
Folding
No
Seat Height (in/mm)
35.8 / 910
Number Of Seats
1
Frame
Chromium Molybdenum
Body Material
Plastic
Hand Grips
Standard
Foot Peg Location
Driver
Adjustable
No
Chain Guard
Yes
Drive Shaft Guard
No
Engine Case Guard
Yes
Fork Guards
Yes
Saddle Bag Guard
No
Belt Guard
No
Brush Guard
No
Exhaust Guard
Yes
Light Guard
No
Side Cover
No
Front Fender
Standard
Rear Fender
Standard
Top Crown
Standard
Stand Type
Kick
Handlebars
Standard
Skid Plate
Standard
Digital Instrumentation
Standard
Clock
Standard
Tachometer
Standard
Trip Odometer
Standard
Speedometer
Standard
Temperature Warning Type
Light
Fuel Level Warning Type
Light
Warranty (Months/Condition)
12 / Limited
Battery Warranty (Months)
0
Metallic
No
Decal Kit
Standard
Headlight Mounts
Standard
Halogen Headlight (s)
Standard
Headlight (s)
Standard
Light Type
Halogen
Folding
Yes
Handlebar Lock
Standard
User Reviews
1 review
  • The Decathlete of bikes
    By  (I am an Owner) on Dec 18, 2015

    I sold a Super Tenere and a DRZ400, replacing them with one bike: the KTM 690 Enduro R. This was the best purchase I have ever made (apart from my Samsung Galaxy Note 4!). This bike is insanely fast out-of-the-box and needs hardly any farkling to hit the trails hard. Stick an Airhawk cushion on the ...

    Read More
