Husqvarna presented the production version of its Vitpilen 701 at EICMA alongside a concept version of its sibling, the Svartpilen 701. We’ll have more on the flat track-inspired Svartpilen 701 in a separate post, but here’s what we know about the “White Arrow” Vitpilen.

Get the Flash Player to see this player.

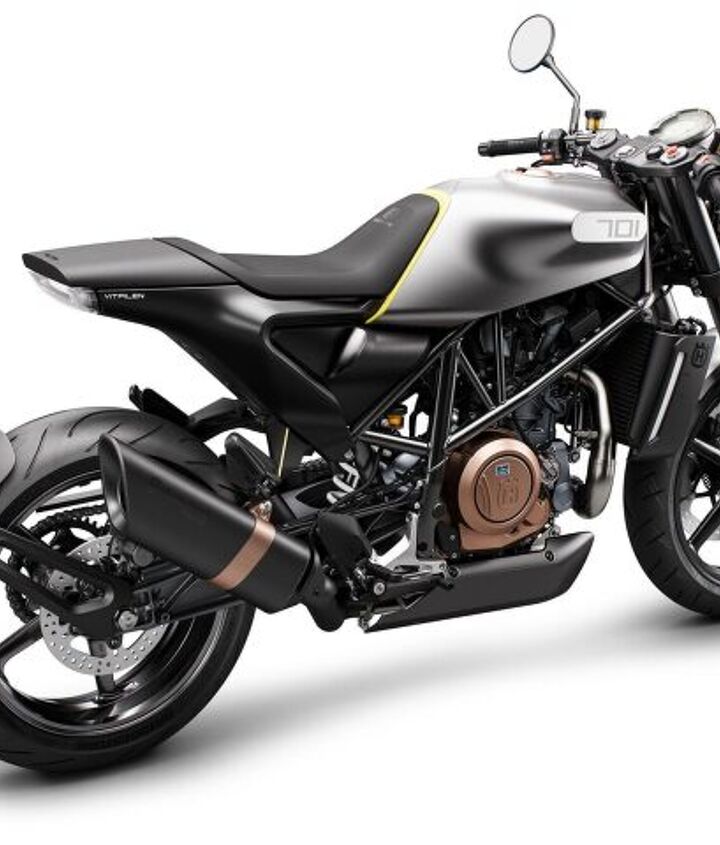

The Vitpilen 701 is powered by a 693cc Single derived from the KTM 690 Duke’s powerplant, claiming 73.8 hp at 8500 rpm and 53.1 lb-ft. at 6750 rpm. The engine is matched with a slipper clutch and six speed transmission. The electronic fuel injection is managed by a ride-by-wire throttle control, with traction control as standard.

The engine is mounted to a chromium molybdenum tubular steel frame. WP Suspension supplies the 43mm upside-down fork and linked rear monoshock, both offering 5.3 inches of travel.

The front wheel is equipped with a single 320mm disc and Brembo four-piston radial-mount caliper while the rear wheel has a 240 mm disc with a single-piston caliper also from Brembo. A switchable Bosch 9M+ ABS comes standard.

Other important details include a 32.7-inch seat height, 3.2 gallon fuel tank and a claimed weight (without fuel) of 346 pounds. We’ll have information on U.S. pricing and availability when they became available.

Follow the rest of our 2017 EICMA show coverage

2018 Husqvarna Vitpilen 701 Specifications

Engine typeSingle cylinder, 4-stroke
Displacement693 cc
Bore x Stroke105 mm x 80 mm
Power73.8 hp at 8500 rpm
Torque53.1 lb-ft. at 6750 rpm
Compression Ratio12.8:1
Starter/BatteryElectric starter/12V 8.6Ah
Transmission6 gears
Fuel systemKeihin EFI (throttle body 50 mm)
Control4 V/OHC with intake cam levers and exhaust rocker arm
LubricationPressure lubrication with 2 oil pumps
Engine oilBel Ray, SAE 10W-50
Primary Drive36:79
Final Drive16/40
CoolingLiquid cooling
ClutchAPTCTM slipper clutch, hydraulically operated
Engine Management/IgnitionKeihin EMS, double ignition
FrameChromium-Molybdenum-Steel trellis frame, powder coated
HandlebarAluminum clip-on
Front SuspensionWP-USD Ø 43 mm
Rear SuspensionWP-Monoshock with linkage
Suspension Travel5.3 inches, front and rear
Front BrakeBrembo four piston, radial mounted , brake disc Ø 320 mm
Rear BrakeBrembo single piston, floating caliper, brake disc Ø 240 mm
ABSBosch 9M+ Two Channel
Wheels Front/RearCast aluminium wheels 3.50 x 17”; 5.00 x 17”
Tires Front/RearBridgestone Battlax 120/70 R 17; 160/60 R 17
ChainX-Ring 5/8 x 1/4″
SilencerStainless steel primary and secondary silencer
Steering Head angle65°
Triple Clamp Offset1.1 inches
Trail4.3 inches
Wheelbase56.5 in. +/- 0.6 in.
Ground Clearance5.5 in.
Seat Height32.7 in.
Tank Capacity (approx.)3.2 gallons
Weight (without Fuel, approx.)346 pounds (claimed)
