2016 Honda CRF250R Review

Scott Rousseau
by Scott Rousseau

Honda gives the CRF250R a healthy boost of power for 2016

Whereas the engine discussion in the 450cc motocross class typically revolves around how to manage the mega dose of power that the big thumpers produce, the dialogue in the 250cc class has more to do with how to strain every last pony out of each manufacturer’s engine design. With the high level of chassis refinement exhibited by practically all of the current 250s, any machine that comes up short in the motor department is going to be handicapped in comparison with its rivals.

2016 Honda CRF250R

Editor Score: 93.0%
Engine 18.0/20
Suspension/Handling 15/15
Transmission/Clutch 10/10
Brakes 9.0/10
Ergonomics/Comfort 8.0/10
Appearance/Quality 10.0/10
Desirability 9.0/10
Value 9.0/10
Overall Score93/100

2015 Honda CRF250R First Ride Review

Honda was apparently well aware that while it made many noteworthy improvements to the 2015 CRF250R, hot on the heels of sweeping changes made for 2014, its decision to simply refine the feel of the engine rather than try to pull more power out of it probably cost the CRF250R a shot at shootout glory. Despite fantastic new engine management technology, a new air fork and generally excellent handling character, it was clear the Honda still needed more motor, and the proof of that attitude change is evident in the 2016 model. When it comes to power, the new CRF250R is ready and willing to duke it out with anything else in its class.

2016 honda crf250r review, While last year s Honda CRF250R was fast it wasn t the fastest machine in its class Honda is trying to change that with a more powerful CRF250R in 2016 We d call that a step in the right direction
While last year’s Honda CRF250R was fast, it wasn’t the fastest machine in its class. Honda is trying to change that with a more powerful CRF250R in 2016. We’d call that a step in the right direction.

We found this out when Honda invited us to Pala Raceway near San Diego, California, to throw a leg over the new CRF250R. Pala features a wide and flowing layout with very few tight turns and few short chutes that lead up to some of its monster jumps, effectively making it a dirt dynamometer. If your machine is down on power, you’ll feel it at Pala. After spending the day aboard the revised 2016 Honda CRF250R, our seat-of-the-pants feeling is that the 2016’s engine represents a vast improvement over the 2015.

At first glance, the 2016 CRF250R’s liquid-cooled, fuel-injected, Unicam SOHC single-cylinder motor doesn’t appear to be any different than the 2015’s. Its oversquare 76.8mm x 53.8mm bore and stroke is the same as before, and its Dual-Timing PGM-FI, 46mm throttle body size is the same, as is Honda’s brilliant Engine Mode Select Button engine mapping feature that was introduced last year. It’s a feature that allows the rider to change among three preset engine maps to alter the CRF’s performance character on the track rather than in the pits – more on that later.

2016 honda crf250r review, The CRF s liquid cooled fuel injected 249cc Unicam engine sports a new lighter piston and connecting rod along with titanium valves to cut down reciprocating weight and give it a freer revving personality The piston also bumps compression from 13 5 1 to 13 8 1 Revised porting and a new higher lift cam also increase airflow with the goal of improved performance
The CRF’s liquid-cooled, fuel-injected 249cc Unicam engine sports a new, lighter piston and connecting rod along with titanium valves to cut down reciprocating weight and give it a freer-revving personality. The piston also bumps compression from 13.5:1 to 13.8:1. Revised porting and a new higher-lift cam also increase airflow with the goal of improved performance.

Look a little closer, however, and the visual cues are there. For starters, the 2016 CRF boasts a redesigned exhaust system that now features a torque-boosting resonator chamber tucked behind the heat shield. Further refinements to the exhaust system include larger muffler cores to reduce exhaust back pressure and increase flow. On the intake side, Honda engineers also revised the air intake boot, which effectively shortens the overall intake tract to foster stronger top-end power.

Delve inside the engine, and you’ll find a new piston and connecting rod that shave 34 grams of reciprocating weight – most of it from the piston – to help the engine rev higher and quicker, offsetting the bump in compression ratio from 13.5:1 to 13.8:1; higher compression typically increases power but at the expense of rpm potential. Honda lightened the valve train to free up even more revs by replacing the previous model’s steel exhaust valves with titanium valves. Both the intake and exhaust ports have also been reshaped to increase flow, and the 2016 CRF250R gets a new camshaft that increases valve lift for better high-rpm breathing. New valve springs are also employed to better control valve motion with the more aggressive cam. The only other corresponding change Honda made was to make the CRF250R’s left-side radiator slightly larger to increase cooling capacity and better dissipate the additional heat generated by the performance-enhancing engine changes.

The payoff of these changes is a Honda engine that retains its general smoothness and crisp response while packing a lot more punch throughout the rev range. Last year, we complained about the CRF’s relative lack of brawn, but we have no such issues with it this year. From vet testers on up to kick-ass pro rider Ryan Abbatoye, all felt that the new engine rips cleanly off the bottom, continues to pull hard through the midrange and revs out with a lot more boost up top than the 2015 engine. This newfound power cuts down on the need to tap-dance on the CRF250R’s shift lever in order to maintain momentum. Need to grunt out of a slow corner? The Honda has enough oomph to get you going. Want to hold that gear and let the motor rev to clear the next tabletop? There’s plenty of thrust to make the obstacle disappear beneath you, and there’s no more need to keep the throttle cracked upon landing in order to maintain momentum for the next jump either. The Honda’s engine is so much fun it left us grinning under our chinbars. Now it has the bite to match its bark, and is actually easier to ride than last year’s machine.

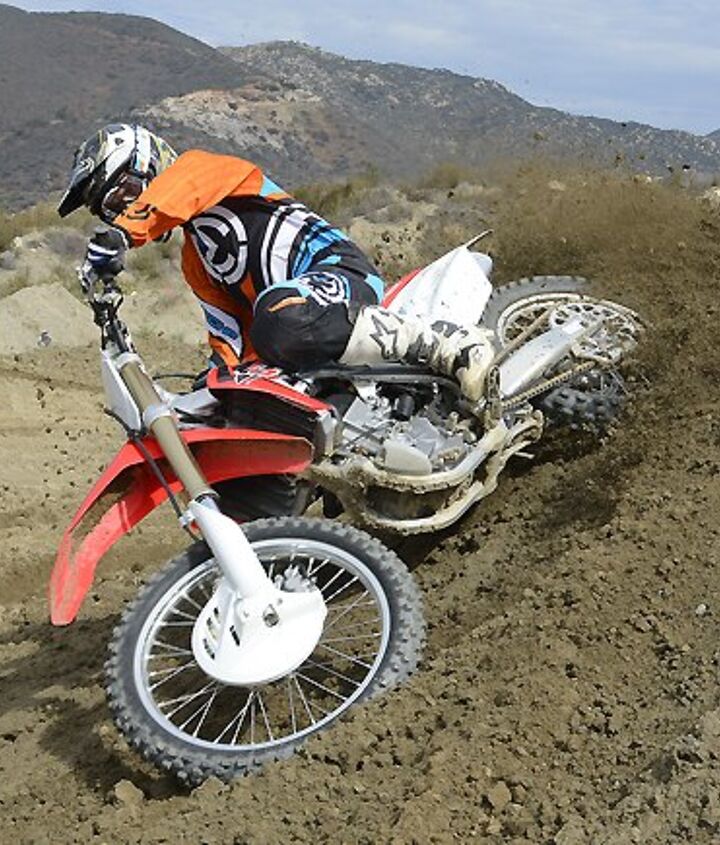

2016 honda crf250r review, Thanks to its improved low end snap and stronger output from bottom to top the Honda can now blast out of a corner with authority and keep right on pulling all the way to the next one
Thanks to its improved low-end snap and stronger output from bottom to top, the Honda can now blast out of a corner with authority and keep right on pulling all the way to the next one.

One thing that we found particularly interesting is how the CRF250R’s improved power output altered our tastes in regards to the ideal Engine Mode Select map for our varied riding styles. A year ago, the CRF’s lack of punch left our slower testers seeking the more aggressive Mode 3, feeling the need for a more aggressive hit, while superhero Abbatoye preferred Mode 1 because he wanted more low-end beef to catapult him up and over moonshot jumps. But with the Honda’s more robust engine, order in the universe has been restored. The CRF’s more prodigious thrust left our vets happy with the stock default Mode 1, knowing that the engine wouldn’t sign off so readily at higher rpm, leaving plenty of power on tap throughout the rev range. Meanwhile, Abbatoye preferred the most aggressive Map 3 because he found that it didn’t sacrifice nearly as much low-end torque as before, allowing him to tap into the CRF’s more aggressive midrange/top-end power and jump into hyperspace.

Even cooler is that the Engine Mode Select feature allows for totally custom maps in Modes 2 and 3, and Honda came up with more useable map settings for the least aggressive Mode 2, which felt as if it really leveled the power curve and found favor among some of our crew. The only bummer is that Honda has yet to come up with a convenient handheld device, such as the units offered by Kawasaki and Yamaha, to make mapping changes, so you’ll still have to drag your laptop to the track in order to load new maps. We hear that Honda intends to remedy this situation very soon, although we couldn’t get any Honda officials to confirm.

Like we said, the CRF250R’s happier engine means you won’t be shifting as often, but Honda went ahead and made changes to its already butter-smooth five-speed gearbox, too. It’s a subtle update, but it’s in there: The 2016 model gets a new shift drum stopper with a bearing added to the roller in order to improve shifting feel under load. We’re sure that’s going to be important to someone, but when you are already recognized for having among the best clutch and transmission action in the class, it seems superfluous to us. Then again, we aren’t full-blown factory stars who mercilessly pound through the gears with clutch-less upshifts and downshifts for 30-minute motos, so perhaps there is a reliability angle to consider as well.

2016 honda crf250r review, Honda really dialed in the CRF250R when it redesigned the bike 2 years ago The 2016 chassis is the same as last year s complete with the redesigned subframe that was created to help save weight and improve the ergos The light steering CR can hunker down and track through ruts without any issues
Honda really dialed-in the CRF250R when it redesigned the bike 2 years ago. The 2016 chassis is the same as last year’s complete with the redesigned subframe that was created to help save weight and improve the ergos. The light-steering CR can hunker down and track through ruts without any issues.

The CRF250R has been recognized as a great-handling machine since its redesign (and before it), and its chassis specs are identical to last year’s machine for good reason. Its narrow, aluminum perimeter frame boasts a low center of gravity that allows the rider to carve a berm or rail through a rutted corner with ease. Honda has stayed with the same 58.6-inch wheelbase, 27 degrees of rake and 4.6 inches of trail since the redesign, as the combination yields a machine that steers precisely and with minimal effort, the forté of the design. To aid high-speed stability the CRF250R’s also equipped with a Honda Progressive Steering Damper (HPSD). The compact mechanical unit is attached to the lower triple clamp, and it can be adjusted to increase resistance to steering deflection as needed.

Even so, now that the CRF250R is a little faster than before, Abbatoye noticed a tendency for our test machine to twitch in the ruts during high-speed braking. Fortunately, this little handling quirk was easily fixed thanks to one of the many changes Honda made to the 2016 CRF250R’s 49mm Showa (SFF TAC) air fork. The latest version still boasts the same 12.2 inches of travel as before, but the outer legs are now 5mm longer, like the 2016 CRF450R’s fork legs. However, unlike the 450, Honda has set the fork legs to protrude 5mm above the top of the 250’s clamp rather than flush with it, thus giving the rider another way to tune the CRF’s handling character. Lowering the fork legs in the clamp (so that ends of the legs are flush) greatly improves the 250R’s resistance to braking bump forces through the bars for fast riders. For most riders who might be seeking a little more stability, we would recommend starting with a 2.5mm change in the same direction to see if it gets the job done for you without noticeably affecting the Honda’s amazingly light steering effort.

Honda also attempted to improve the overall fork action of the SFF TAC. As before, the air chambers are incorporated in the left leg, while the right leg houses the damping cartridge, but unlike other Showa air fork designs used by its competition, the CRF250R houses all three air chambers (Inner Chamber, Outer Chamber, Balance Chamber) inside the fork, same as the factory Showa fork, to reduce the chance of impact damage to an external Balance Chamber.

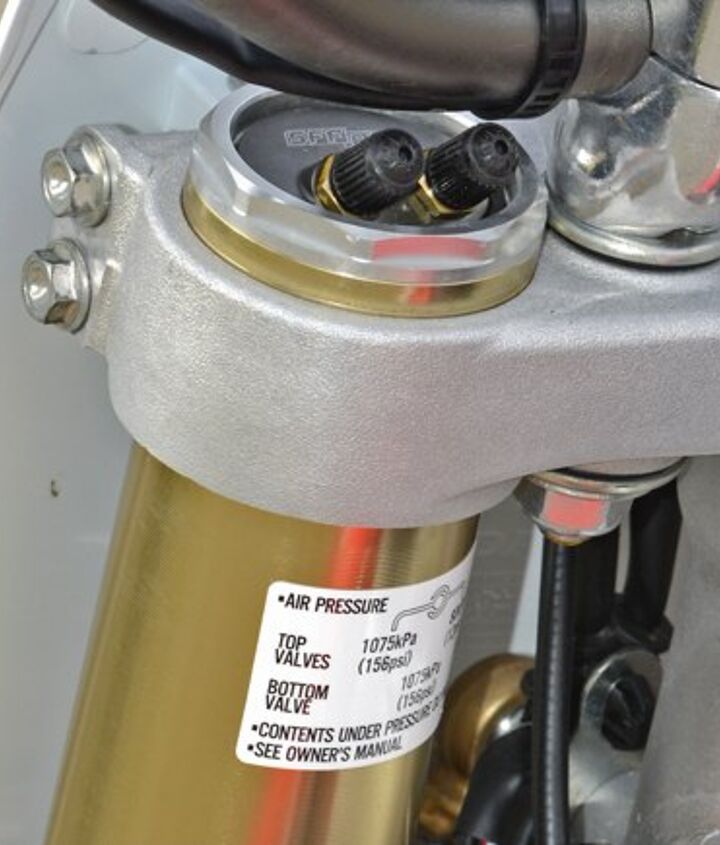

2016 honda crf250r review, Honda revised the CRF250R s Showa SFF TAC air fork for 2016 by adding a third adjustment valve second up top to allow adjustment of the Outer Chamber pressure Redesigned fork seals reduce friction as the fork goes through its stroke The outer fork legs are also 5mm longer to allow the rider one more steering stability adjustment by moving them up or down in the triple clamps
Honda revised the CRF250R’s Showa SFF TAC air fork for 2016 by adding a third adjustment valve (second up top) to allow adjustment of the Outer Chamber pressure. Redesigned fork seals reduce friction as the fork goes through its stroke. The outer fork legs are also 5mm longer to allow the rider one more steering/stability adjustment by moving them up or down in the triple clamps.

Compared to the 2015 CRF250R, pressure in the Inner Chamber (primary spring) has been reduced in attempt to provide more suppleness in initial travel. Honda also redesigned the inner fork seal by changing the shape and going from two seals to three seals. Honda claims that the new design decreases friction. A third adjustment valve has also been added so that the Outer Chamber pressure can be increased to resist bottoming. The Outer Chamber pressure was not adjustable in 2015. Honda also made slight valving adjustments to the fork cartridge to compensate for the reduced friction of the new seals.

While Honda still recommends that riders attempt to tune the SFF TAC through valve adjustments rather than messing with air-chamber pressure (which alters the spring rate), our testers found it easier to dial-in our fork by making air pressure changes first, as Abbatoye felt that the fork action was too stiff initially, even on what was a mostly smooth surface at Pala. Showa engineers remedied this by reducing the Outer Pressure chamber from 12 psi to 8 psi and increasing the Balance Chamber pressure from 154 psi to 160 psi on our test bike. The difference was night and day, as the fork now delivered a supple ride through stutter bumps while refusing to bottom during landings from big jumps. After that, it was just a matter of twisting the damping clickers, same as a conventional spring fork, to find our preferred settings. One other positive change Honda made for 2016 was to increase the number of clicks per rotation from four to eight, doubling the number of incremental adjustments that can be made. We appreciate that, as we tended to notice that the 2015 fork was either dead-on or way off when going from one click to the next.

Like the fork, the CRF250R’s Showa piggyback reservoir single-shock has received minor valving changes for 2016 to keep the rear suspension action in balance with the fork action, and it, too, gets double the amount of clicker adjustments to effect more minute damping changes. Otherwise, the rest of Honda’s Pro-Link rear suspension is unchanged from last year, when the shock received a stiffer and lighter spring. The shock retains its rebound adjustability, along with low- and high-speed compression adjustments.

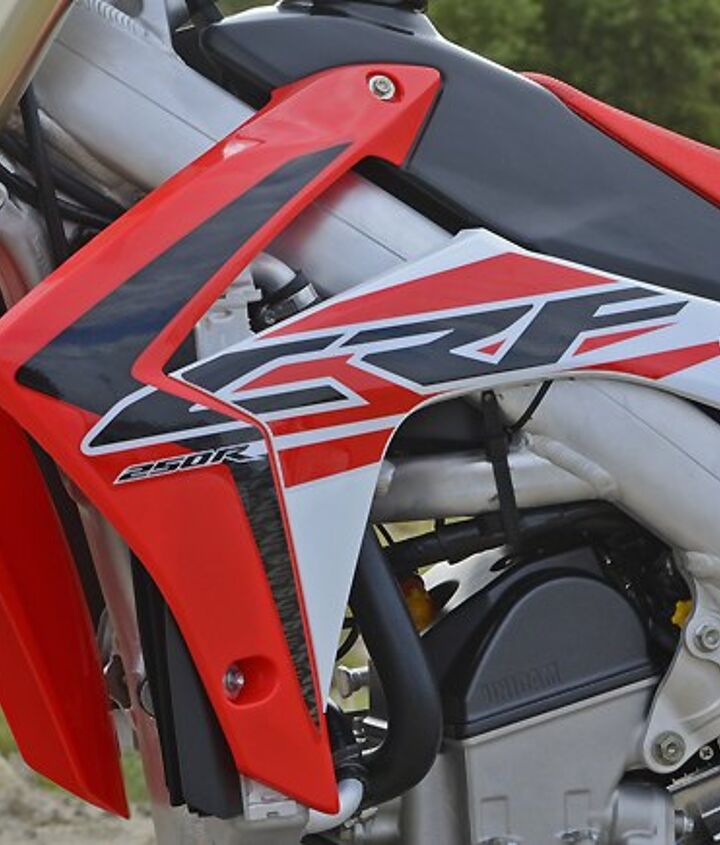

2016 honda crf250r review, If there s one thing we can t stand about the CRF2540R and CRF450R it is that their radiator shrouds and especially those black louvers that protrude just below them snag boots and kneeguards with reckless abandon during cornering The situation spoils an otherwise comfortable ergonomic layout
If there’s one thing we can’t stand about the CRF2540R (and CRF450R), it is that their radiator shrouds (and especially those black louvers that protrude just below them) snag boots and kneeguards with reckless abandon during cornering. The situation spoils an otherwise comfortable ergonomic layout.

But even after all the changes that Honda has made to the CRF250R over the past two years to bring it to its current level of competitiveness, there’s still one thing that we absolutely hate about it. The Honda still has a nice and compact ergonomic layout from the rear of the seat into the sides of the tank, yet its overall ergonomic comfort is seriously spoiled by a radiator shroud/louver design that snags the riders knee and/or boot every time he or she throws a leg forward to dive into a corner. To call it annoying would be an understatement, although we do realize that hate is a strong word – that’s why we used it. Shame, too, because Honda’s move to slim up the subframe in 2014 was a positive change. We would just invite ’em to finish the job at the front of the bike now. Perhaps moving to smaller or narrower, V-shaped radiators and completely redesigning the shrouds, like some of its competitors have, might do the trick … hint, hint… Until then, the CRF250R is an otherwise great bike that suffers an obvious ergonomic flaw.

There are two other minor changes worth noting on the 2016 CRF250R. They include a revised footpeg bracket design that is supposed to be less likely to collect crud when the going gets muddy. Also, Honda apparently shares Yamaha’s “smaller is better” line of reasoning where it pertains to the diameter of the chain roller. Honda has reduced the size of the 250’s chain roller from 38mm to 34mm to allow for more swingarm travel before the chain roller contacts the chain, which could potentially cause some chain torque-induced traction loss at the rear wheel. As the old saying goes, what will they think up next?

We are totally cool with the power and feel of the CRF250R’s 260mm front wave rotor and Nissin two-piston caliper. In fact, front and rear, the brakes are neither grabby nor wooden feeling, just smooth and powerful. When it comes to grab, however, we do appreciate that the CRF250R is equipped with Dunlop’s Geomax MX52 tires. About the only thing that could be better would be if it came with the MX32s, but only because we know just how damn good those tires are. The MX52s offer more than acceptable grip but with way more wear resistance than the suction cup-like MX32s.

2016 honda crf250r review, Honda s new CRF250R is flying higher than ever thanks to its improved engine and revised suspension We won t be shocked if it finds itself at or near the top of the 250cc motocross class in 2016
Honda’s new CRF250R is flying higher than ever, thanks to its improved engine and revised suspension. We won’t be shocked if it finds itself at or near the top of the 250cc motocross class in 2016.

Despite our gripes about its ergos, we are willing to admit that Honda should probably have raised the price of the 2016 CRF250R to reflect its level of improvement. All said and done, its engine is now worthy of being called potent, its latest-gen SFF TAC fork delivers more adjustability – for handling as well as suspension compliance – and its chassis is still a thing of beauty. So, if the 2016 CRF250R’s MSRP had been $200-300 higher, we would have understood. But that’s where the customer wins big time, because the 2016 CRF250R’s $7599 price tag is identical to that of the 2015, and the ’16 is a much faster motorcycle. There’s no question that Honda has whipped the CRF250R into class contender shape.

With all of the Japanese manufacturers (Yamaha aside) making more than just subtle changes to their 250cc motocrossers, and with KTM and Husqvarna annually drawing heavily off their previous year’s “factory” models, 2016 promises to be an interesting year in the 250cc class. The 2016 Honda CRF250R just made it more interesting for us.

2016 Honda CRF250R Specifications

Engine Type249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke76.8mm x 53.8mm
Compression Ratio13.8:1
Valve TrainUnicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, titanium
InductionDual-Timing PGM-FI, 46mm throttle body
IgnitionFull transistor with electronic advance
TransmissionClose-ratio five-speed
Final Drive#520 chain; 13T/49T
Front Suspension49mm inverted Showa SFF-Air fork with 30-position rebound and 30-position compression damping adjustability; 12.2 inches travel
Rear SuspensionPro-Link Showa single shock with adjustable spring preload, 34-position rebound damping adjustability, and compression damping adjustment separated into low-speed (26 positions) and high-speed (3.5 turns); 12.3 inches travel
Front BrakesSingle 260mm wave-style disc with twin-piston caliper
Rear BrakesSingle 240mm wave-style disc
Front TireDunlop MX52 80/100-21
Rear TireDunlop MX52 100/90-19
Wheelbase58.6 inches
Rake27° 23’
Trail118mm (4.6 inches)
Seat Height37.4 inches
Ground Clearance12.7 inches
Fuel Capacity1.7 gallons
Claimed Curb Weight*231.0 pounds

*Includes all standard equipment, required fluids and full tank of fuel – ready to ride.
