A Visit With Champions: Touring the MV Agusta Museum

Troy Siahaan
by Troy Siahaan

MV Agusta’s rich history is more than just motorcycles – there are helicopters, too!

Photos: MV Agusta and Troy Siahaan

Riding through the little village of Samarate in Varese, Italy, the roads are narrow, with flats adorning one side – usually two or three stories high – and fields and trees adorning the other. Cars parked along the road make the narrow street even tighter, and the foot traffic marching to the church can clog the streets on a Sunday. It’s a sleepy little town and is remarkably easy to miss. You can ride right on through, from one end to the other, and dismiss the town entirely. Except for the little house with a helicopter – four, actually – resting on the lawn under canvas tarps. They’re so out of place in this little town that it’s hard not to stop and wonder what they’re doing there. That’s when you realize you’ve reached the Museo Agusta, or the MV Agusta museum.

Fans and enthusiasts obviously recognize the MV Agusta name for its creations on two wheels, but the Agusta namesake first made itself known in the world of aeronautics and helicopters. Dating back to its first flight in 1907, air travel was the Agusta family’s first love, and its contributions to the aerospace industry continues to this day. The second world war disrupted the Agusta family’s flight ambitions, and immediately after the war, it turned to motorcycles as a means of mobilizing Italians (not unlike its neighbors in Bologna…). This 30-year period from 1946 to 1976 would prove fruitful for MV Agusta, as it won countless races, regional championships, and of course, 37 world championships before shutting its doors in 1977.

The Museo Agusta is the haven for which some of the most important and significant MV Agusta artifacts are housed, from both the motorcycle and aeronautics divisions. And speaking of housing, the accompanying Agusta Museum Foundation is the actual home the Agusta family lived in and was fully renovated and refurbished back to its 1935 status. This is where the corporate archives of the company are stored and displayed, located just steps away from the Museo Agusta. If you’re an aviation enthusiast, you’ll find over 75,000 slides, 20,000 drawings, and over 1,400 volumes, including books and magazines from 1900-1940. There’s even a Chinese publication dating back to 1890!

Though the original furniture from 1935 has been lost to time, the restoration captures the essence of the era, and save for the kitchen, which is now used as an archive, the rest of the home is like walking into a time capsule. Unfortunately, we didn’t get the chance to venture over to the old Agusta home.

Recently however, Motorcycle.com had the opportunity to tour the Museo Agusta. And while we, like many of you, enjoy the wonders of flight, we kept our focus on the legendary motorcycles within the museum. There were far too many artifacts to capture it all, but these were some of the highlights of our trip.

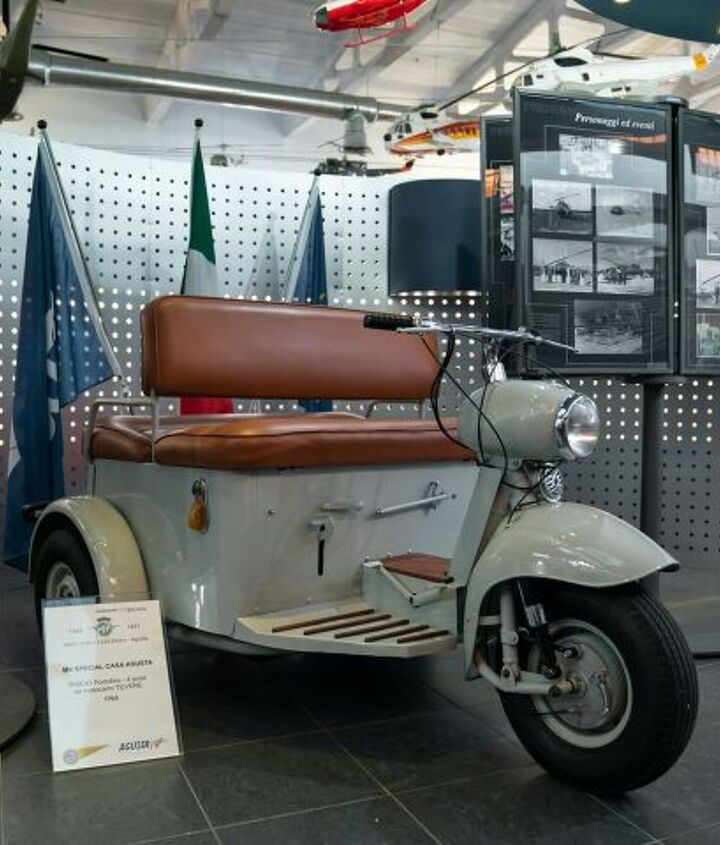

Not what you think of when you hear MV Agusta, is it? One of the first things you see inside the museum as you walk through the front door, the Agusta family requested this rickshaw be built, and the family used it during the 1950s and 1960s to transport people across the hills surrounding the villa.

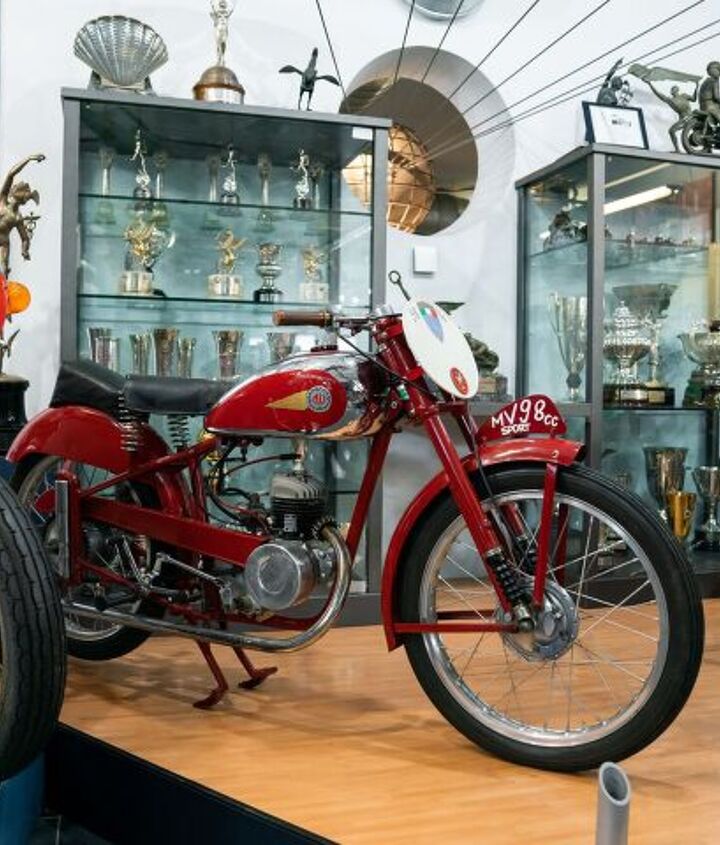

After WWII ended Italy was forbidden from producing airplanes, so the Agusta family turned to motorcycles. This was the very first MV Agusta, or Meccaniche Verghera, motorcycle. The “MV 98,” as it was called, was built in 1946 and powered by a 98cc single-cylinder engine. In 1947, Franco Bertoni rode it to MV Agusta’s first-ever victory in Carate Brianza, near Milan. Thus set in motion MV’s racing heritage.

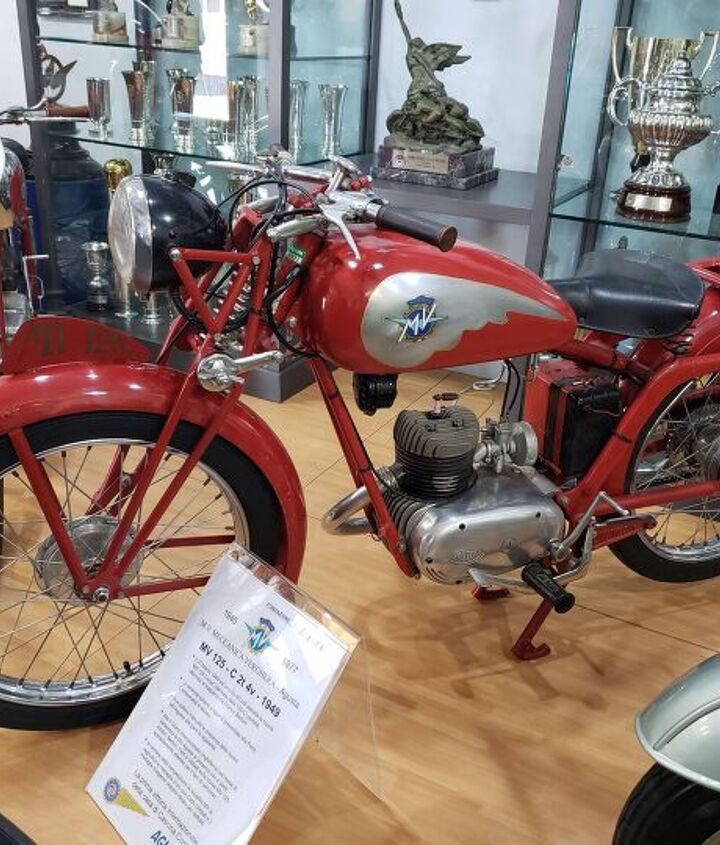

Racers are always asking for more power, and it didn’t take long before the MV 98 wasn’t fast enough for MV’s racers. MV answered the call in 1949, and in March of that year, the MV 125 Corsa, seen here, made its debut.

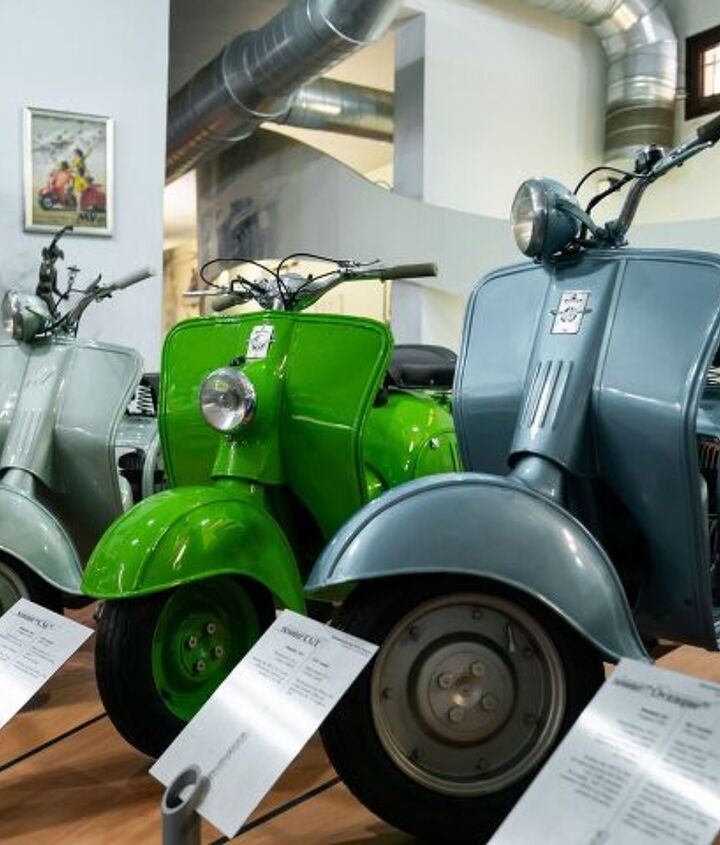

Like other Italian motorcycle manufacturers that came to life after the war, the objective wasn’t about racing, but to get Italians mobile again. During the 1950s, MV Agusta also produced scooters to keep people moving.

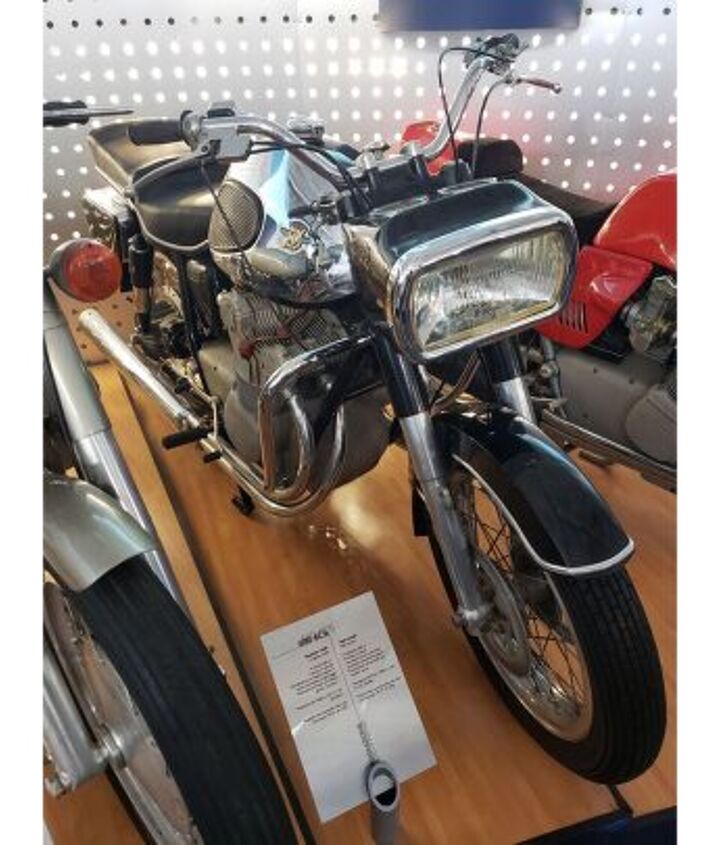

Honda is better known for bringing a 750cc four-cylinder to the masses in 1969 with the CB750, and its success is well documented. But did you know MV Agusta beat Honda to the four-cylinder punch – by one year? In 1968, MV introduced the 600 4C6. It was a 600cc straight-four with two gear driven(!) camshafts, five gears, and a shaft drive. Produced from 1968 until 1971, only 127 models were made. The 600 4C6 was ultimately a flop due to it being significantly more expensive than the Honda.

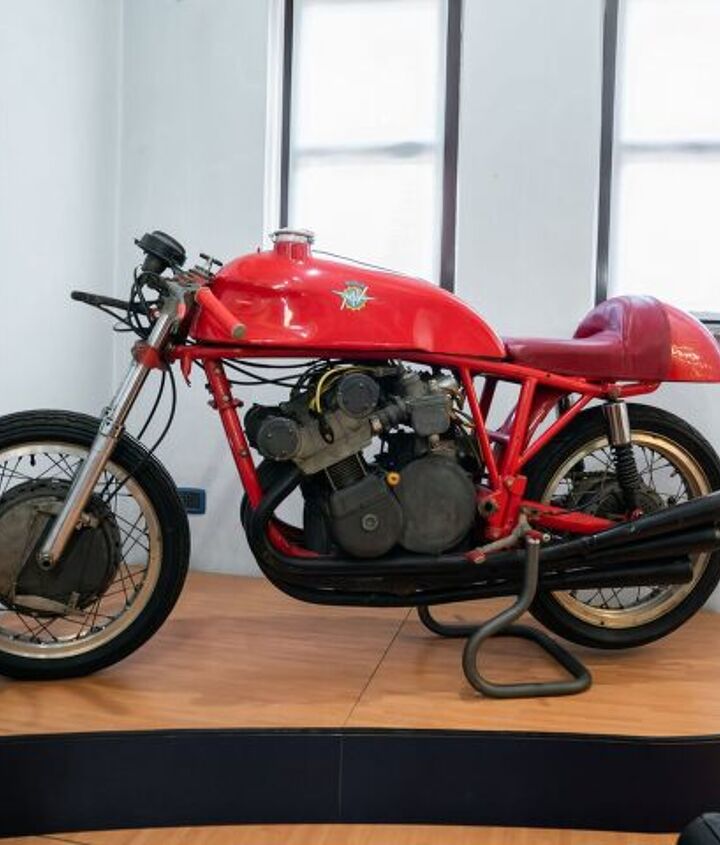

Manufacturers were experimenting with all sorts of engine designs during the 1950s and 1960s, and MV Agusta was no different. This six-cylinder racing machine is just one example.

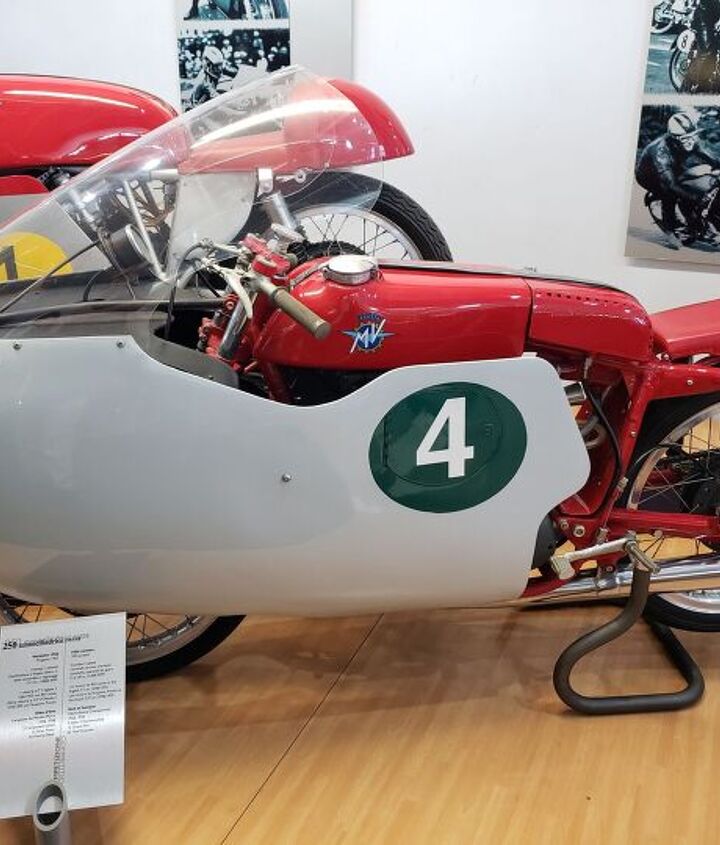

Dustbin fairings were a novel idea in terms of aerodynamics in a straight line, though any significant crosswind would spell trouble fast. This 1956 250 monocilindrico corsa only made 31.6 horsepower (at 10,000 rpm!) from its 250cc Single with two gear-driven camshafts, but its five-year racing career between 1955 and 1959 would see it win five Italian championships, 12 grand prix, and 42 total victories.

This odd duck above is a 1951 500 Corsa. Powered by a 500cc four-cylinder four-stroke with two gear-driven overhead cams, it made 51.5 horsepower at 9,000 rpm. More interesting than that is the clever engineering for the time. The cutouts along both sides of the fuel tank allow for the steering sweep of the bars, while also allowing the rider to place their arms there while in a tuck. The cutouts closest to the seat keep the rider’s knees tucked away and out of the wind, too. If you look at the front suspension, you’ll see MV Agusta was already experimenting with alternatives to the conventional telescopic fork. This linkage-type front suspension is similar to other linkage designs like the Hossack or BMW’s telelever in that the design separates braking force from suspension force, allowing the wheelbase and front end geometry to remain fairly consistent.

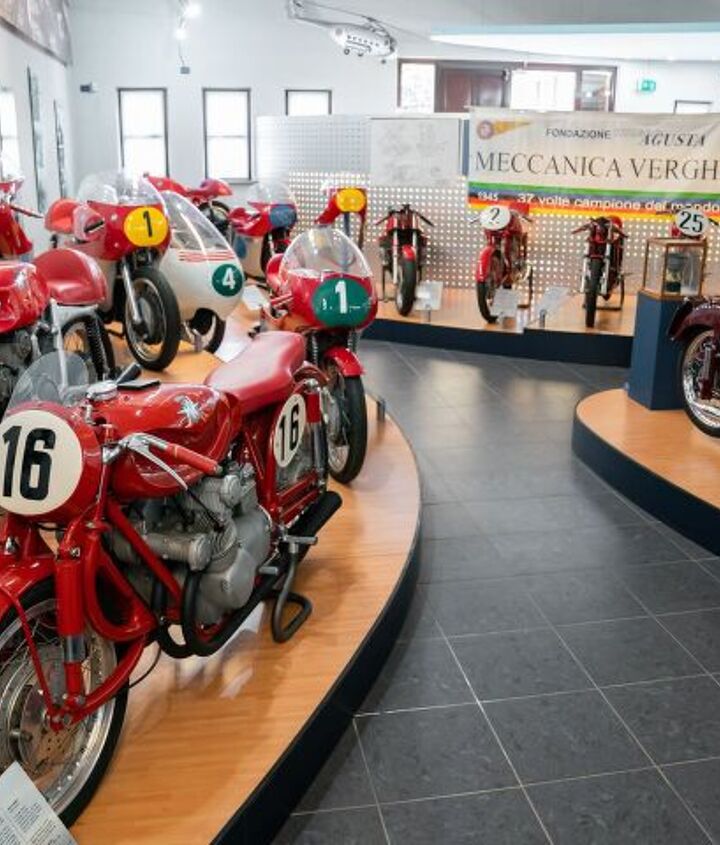

The museum’s rich racing history is on full display. And this isn’t even all of them.

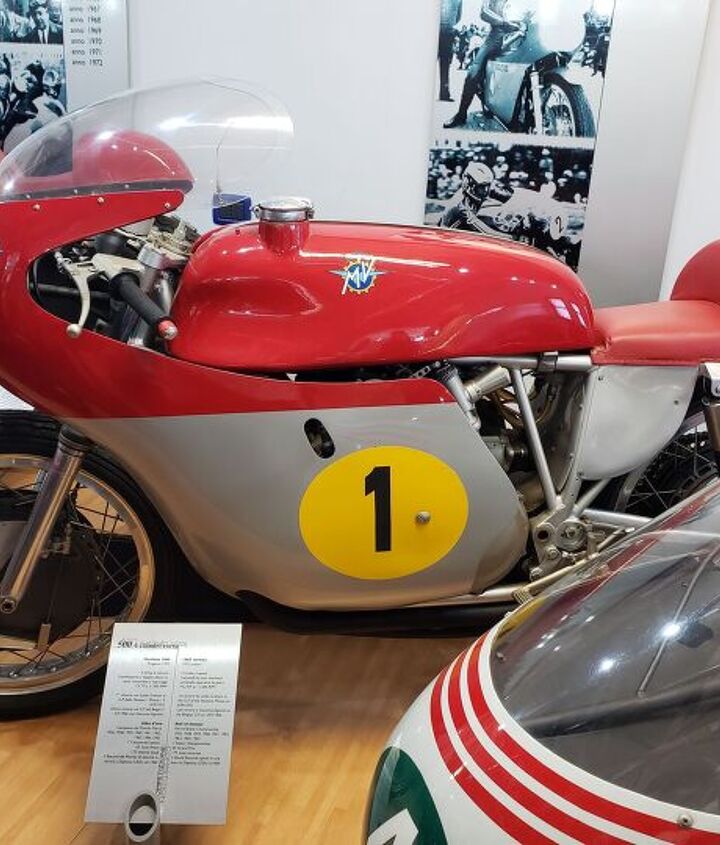

Giacomo Agostini is synonymous with MV Agusta. One of his first rides was this 1966 500cc 4-cylinder 4-stroke. With 6 speeds, and gear-driven DOHC, it made 74hp at 11,500rpm. Ago notched the bike’s last victory at the 1966 Belgian GP, the bike’s winning ways started 14 years earlier, in 1952. In all, this bike won 9 World Constructor’s Championships, 7 Italian championships, 65 grand prix, amassed 175 total victories, and two world records at Daytona for highest average speed in one hour.
One of the gems in the museum is this 500cc 3-cylinder that Agostini rode to the 1972 world championship. This 500cc 4-stroke Triple has 6 speeds and DOHC driven by gears. Max power was 78.9 hp at 12,800 rpm. It tasted success immediately in 1966 with Ago onboard and maintained its winning ways even after Ago’s world title, as Alberto Pagani took the bike’s last win in 1973. In between, it won six world titles, seven Italian championships, 62 grand prix, and amassed 147 total victories.

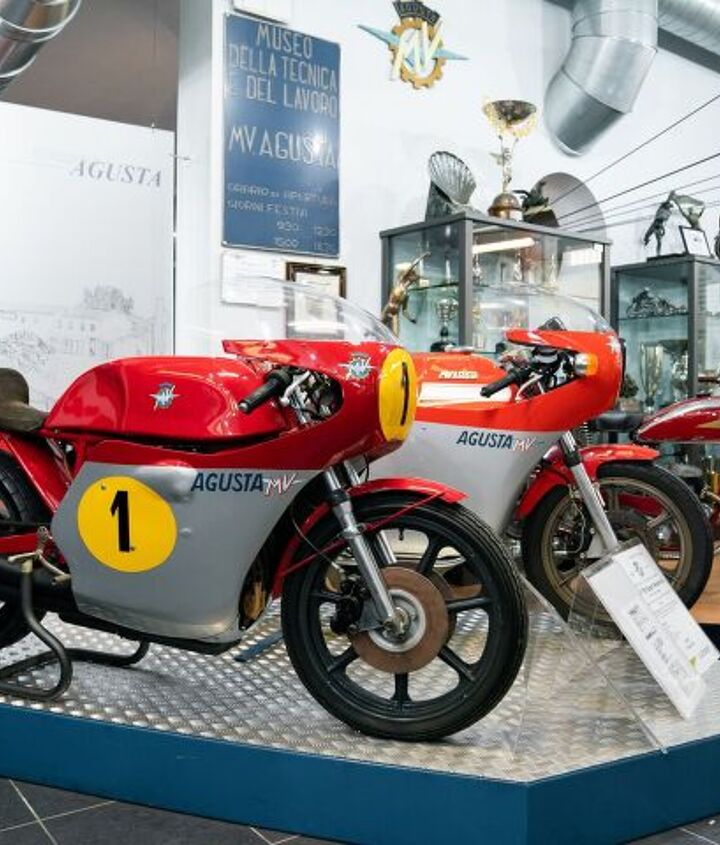

Above are two very significant MV Agustas, in a room filled with them. The 500cc four-cylinder in the foreground is the last Grand Prix race bike MV Agusta produced in 1976 before taking a 15-year hiatus starting the following year. Behind it is a 750S America – but this isn’t just any 750S America. The 750S America was MV’s last road model produced before it shut down, and this one comes courtesy of Seiji Fukuda of Japan. Fukuda-san was the sole Japanese importer of Magni motorcycles, which itself was founded by Arturo Magni, historic director of the MV Agusta racing department. Fukuda and Magni became good friends and Fukuda-san asked Magni to find a significant MV Agusta to add to his personal collection, and Magni immediately suggested this 750S America and personally took it upon himself to complete the restoration back to its original condition, even signing it to prove his dedication. In 2023, after three decades in his collection, Fukuda-san has donated his 750S America back to the MV Agusta museum, returning it home.

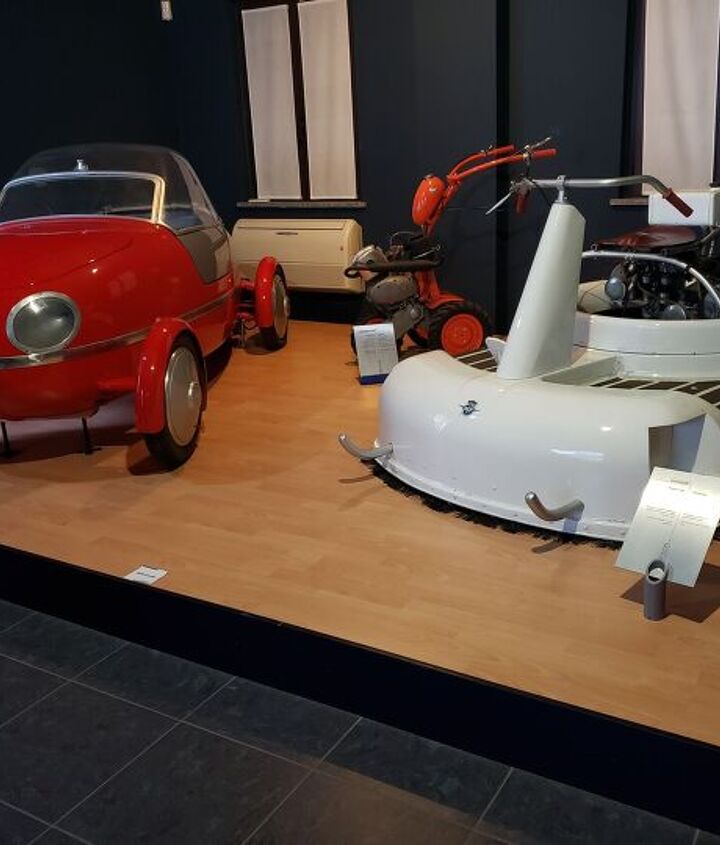

In the above photo, tucked away in the far depths of the museum, are these oddities. Starting on the left is an experimental prototype car from 1951, one of only two ever made. Powered by a 350cc twin-cylinder four-stroke, the engine is in the rear and drives the rear wheels, which are suspended on independent A-arms – something mainstream cars wouldn’t adopt for years. In the middle is an MV Agusta garden tiller, and on the right in white is an “overcraft” from 1969, powered by a 300cc twin-cylinder two-stroke and built in collaboration with Bell-Aircraft, in which MV Agusta partnered with for helicopter production. Less than 10 were ever produced.
