BMW Wins Innovation Award for Carbon Fiber Swingarm

Press Release
by Press Release

Back in 2016, both Ducati and BMW announced new carbon-framed sportbikes. Both shown at EICMA, the Ducati 1299 Superleggera and BMW HP4 Race impressed with their use of the lightweight material. Both made use of carbon fiber frames, subframes and wheels. The Superleggera, however, had a slight edge with a carbon fiber swingarm compared to the HP4’s alloy swingarm.

All that makes it ironic that it’s BMW and not Ducati that won an innovation award for developing a carbon fiber swingarm. The award was handed out by the JEC Group, a composite material organization, recognizing innovation in composite materials for the sports and leisure category. BMW beat out a carbon hydrofoil surfboard and a carbon/polyethylenimine hockey stick.

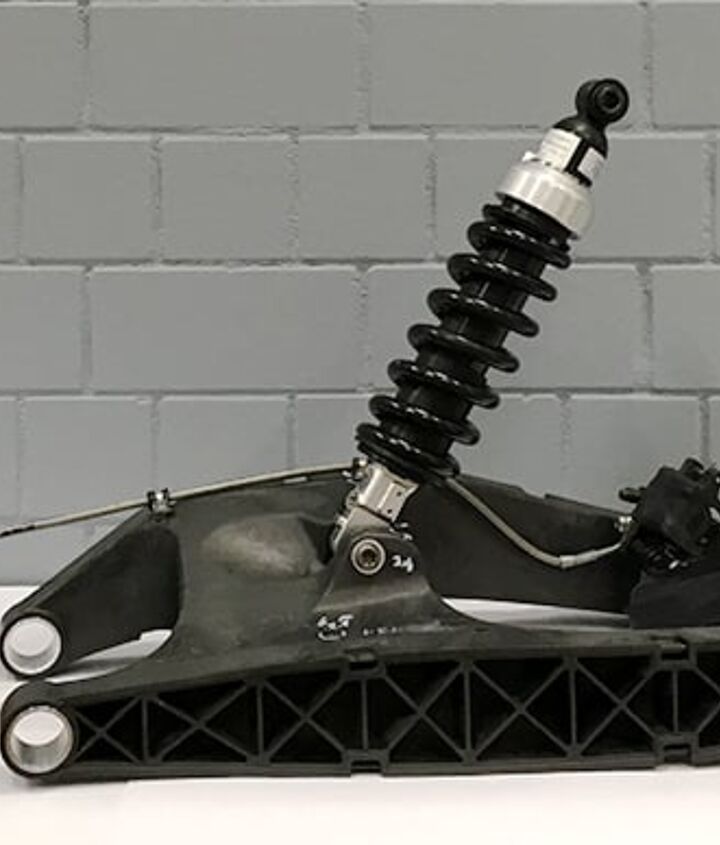

BMW’s swingarm is of a modular design, with a carbon-fiber swingarm with various additional reinforcement materials to adapt the swingarm for different demands, all using a single injection mold. BMW’s process boasts high scalability and reduced costs, claiming a cost of 25 euros per unit for the basic swingarm design without the additional add-ons.

At the moment, the carbon fiber swingarm has not been introduced to any production motorcycle, but we should expect to see it on an updated HP4 Race in the near future.

Begin Press Release:

BMW Motorrad receives JEC Innovation Award. Prize-winning rear swinging arm made of carbon fibre

Munich. On 7 March 2018, BMW Motorrad was presented with the 2018 JEC Innovation Award in the Leisure & Sports category for the development and manufacture of a rear swinging arm made of carbon fibre. The award ceremony was held at JEC World in Paris Nord Villepinte. As the person at BMW with overall responsibility for funding projects in the area of lightweight composite fibre, Dr. Joachim Starke was there to receive the award on behalf of the team as a whole.

Established in 1996, the JEC Group is the world’s leading specialist organisation for the development, manufacture and processing of composite materials. The JEC Innovation Award is conferred by a jury of international experts and goes to 30 companies in ten categories.

The BMW Group uses lightweight construction in both automobiles and motorcycles, applying an intelligent combination of different materials including carbon fibre as a particularly important element. The latest example from BMW Motorrad was the HP4 RACE, where the entire main frame was made of carbon fibre reinforced plastic produced by means of an industrial RTM process. In 2017 the carbon fibre frame of the HP4 RACE opened a whole new chapter in motorcycle chassis construction, combining optimum technical qualities, uniform manufacturing quality and cost efficiency for the first time.

BMW Motorrad has now taken a further step towards consistent lightweight construction and excellent technical properties in motorcycles with a rear swinging arm likewise produced by means of an industrial process. The project MAI hiras+handle was sponsored by the German Federal Ministry of Education and Research as part of the leading-edge cluster MAI Carbon. The aim of this cooperative venture bringing together seven partners from industry and research was to develop a process that enabled the cost-effective volume-production use of carbon fibre composite materials (CFP) in structural components subject to high levels of continuous stress. In the case of this particular part, it was also possible to establish a cost-efficient manufacturing process suitable for the large-scale production of injection mould components made of carbon fibre reinforced plastic with CFP tape reinforcements using thermoplastic material.

Project manager Elmar Jäger explains the development of the concept as follows: “We opted for chassis components under continuous load since the requirements involved are especially demanding. While car chassis parts are concealed, the visible motorcycle rear swinging arm was ideal for our project since the forces at work are immediately evident. Our production technique uses CFP in the form of high-strength endless fibres where this is required by the stress pattern, while an injection mould part with short CFP recycling fibres is used where the stress levels are not as high. In this way, we developed a cost-efficient design that can be scaled according to requirements by inserting endless fibres with varying levels of strength in the same tool. These were the points that impressed the international jury. The insights we gained from this motorcycle component are equally valuable from the point of view of car development and can be applied accordingly.”

Joachim Starke explains the new production process and its advantages: “In addition to achieving weight benefits and cutting costs significantly, we also managed to develop a technology that allows precise configuration of component properties by using a variety of composite and metal inserts.” This scalability means that a single tool can be used to produce a wide range of different components at cycle times of less than a minute. The maximum strength can be adjusted by means of additional CFP panels which can be thermoplastically joined. The project also involved successful testing with welding robots. “All this impacts significantly on cost efficiency (component costs) as well as part properties (strength and stiffness),” adds Starke.

“With this example of the rear swinging arm, the project has allowed BMW Motorrad to take on a pioneering role within the motor vehicle industry. The insights gained consistently build on the BMW i3 as the basis for the use of CFP in serial production and include interesting aspects in terms of the future development of new BMW motorcycles and automobiles.
